Manitowoc JD1803W Parts Diagram
Currently Viewing: J1800 Panels  > Go Back To Other Parts Lists

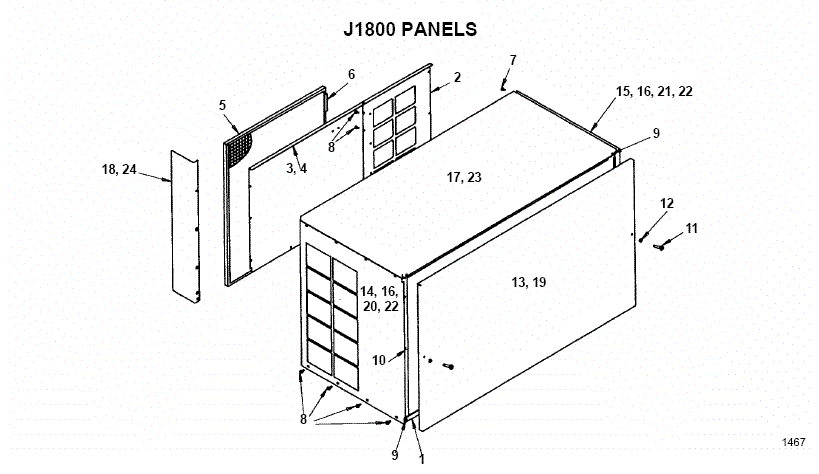

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   000000170 Manitowoc Support Front Angle - 000000170 Ships In 7-10 Days $144.92
2   6014721 Panel, Back, Air Ships In 7-10 Days $117.23
3   6015401 Panel, Back, Water Ships In 7-10 Days $473.54
4   6022421 Panel, Back, Remote Ships In 7-10 Days $70.15
5   4040143 Manitowoc EZK Filter 26.00 X 26.00 - 40-4014-3 Ships In 7-10 Days $48.00
6   76-2686-3 Manitowoc Air Filter Bracket - 76-2686-3 Ships In 7-10 Days $69.23
7   56-4820-9 Canoe Clip Fastener (Pkg of 6) Ships In 7-10 Days $11.08
8 52-0206-9 Sl Hex Hd Screw (Pkg of 12) Ships In 7-10 Days $10.15
9 52-0209-9 Phil Flat Hd Screw Pkg of 12 - Obsolete
10   54-2910-9 Cage Nut (Pkg of 12) Ships In 7-10 Days $14.00
11   50-2668-9 Fastener Screw (Package of 12) - 50-2668-9 Ships In 7-10 Days $8.31
12   37-1819-9 O-Ring .145 ID-Pkg of 12 Ships In 7-10 Days $8.31
Fawn
13 Front Panel - No Longer Available
14   6002691 LH Side Panel Air Fawn Ships In 7-10 Days $292.62
15   6002681 Rh Side Panel Air Fawn Ships In 7-10 Days $292.62
16   60-0267-1 Side Panel W/R Fawn Ships In 7-10 Days $341.54
17   6014761 Manitowoc Top Cover, Fawn - 601476-1 Ships In 7-10 Days $424.62
18   6002991 Manitowoc Air Baffle Fawn Ships In 7-10 Days $36.00
Stainless Steel
19   76-2762-3 Front Panel Assy, J1800, SS Ships In 7-10 Days $1,281.23
20   6002693 LH Side Panel SS, Air Ships In 7-10 Days $364.62
21   6002683 Rh Side Panel SS, Air Ships 1 - 2 Days $371.08
22   600267-3 Side Panel SS, W/R Ships In 7-10 Days $180.92
23   601476-2 Cover, Top, SS Ships In 7-10 Days $805.85
24   600299-3 Air Baffle,SS Ships In 7-10 Days $70.15
