Manitowoc QD1603W Ice Machine Parts Diagram

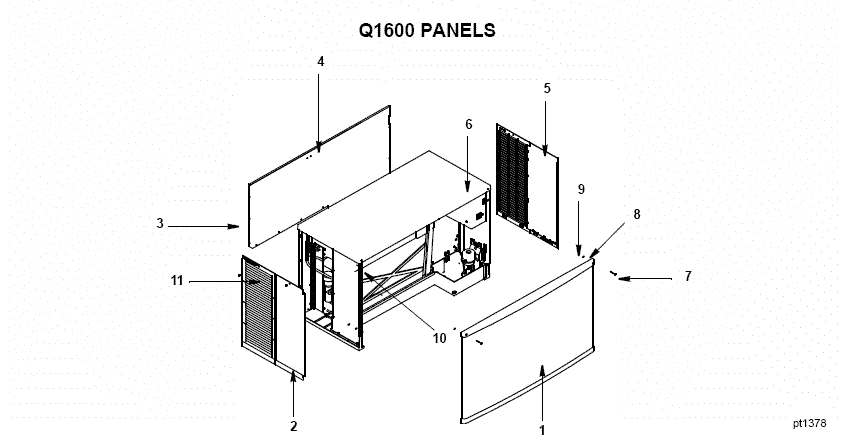

Currently Viewing: Q1600 Panels > Go Back To Other Parts Lists

Parts List Begins Below The Diagram Image

Jump To The Parts List

click to open the full-size image in a new window

Item		Part#	Description	Stock	Price	Qty
1		76-2879-3	Front Panel Assy	Ships In 7-10 Days	$894.46
2		76-2859-3	LH Side Panel Assy	Ships In 7-10 Days	$178.15
3		6025991	Panel, Water, Back	Ships In 7-10 Days	$91.38
4		60-2607-1	Panel, Back, Rem	Ships In 7-10 Days	$116.31
5		76-2860-3	RH Side Panel Assy	Ships In 7-10 Days	$163.38
6		43-0332-3	Cover, Top, 48	Ships In 7-10 Days	$253.85
7		51-1901-9	Screw, #8 X 1.75 Type B Pkg 6	Ships In 7-10 Days	$12.00
8		55-7338-9	Flat Washer-Nylon-Pkg of 12	Ships In 7-10 Days	$7.95
9		56-4827-9	Retainer, #8 Nylon Screw Pkg12	Ships In 7-10 Days	$6.95
10		54-7303-9	Speed Nut, J Type C80388 Pkg12	Ships In 7-10 Days	$9.95
11		52-0209-9	Phil Flat Hd Screw Pkg of 12 - Obsolete
12		92-0250-9	Extruded Tape 3/16 X 3/8 - 25 Ft Roll	Ships In 7-10 Days	$23.95
NOTE: Items 7,8,9, & 10 can be ordered as an assembly (1 each)		76-2898-3	Speednut/Screw - Front Panel	Ships In 7-10 Days	$8.31
