Manitowoc QY1805W Parts Diagram

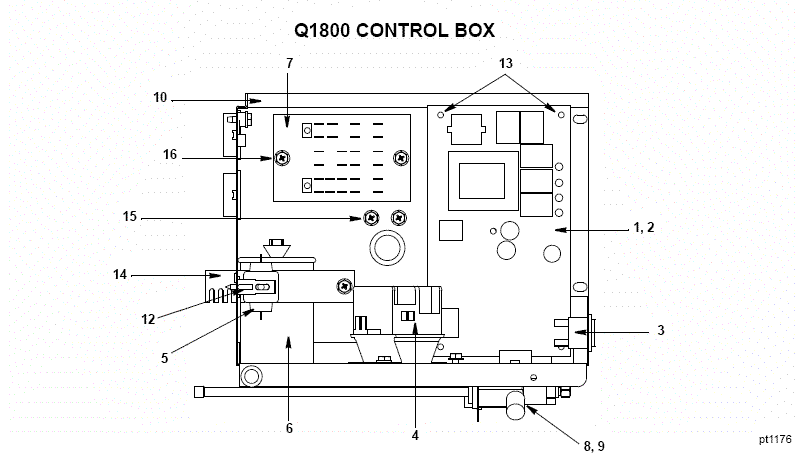

Currently Viewing: Q1800 Control Box  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1 7627823 Manitowoc Control Board, J/Q/IB Series In Stock $599.00
2   25-1100-3 Fuse 7 Amp 5 Pack Ships In 1-2 Days $31.95
3 Toggle Switch Only 23-0134-3 Switch, Rocker Ships In 1-2 Days $32.31
3a Switch W/Harness 20-3217-3 Wiring Harness - Switch Ships In 7-10 Days $36.00
4a Contactor - Single Phase   24-1033-3 Contactor, 208-240V, 2 Pole Ships In 1-2 Days $82.15
4b Contactor - Three Phase   20-0661-9 Contactor, 208-230V 60 Hz 3 Phase 3 Pole - 20-0661-9 Ships In 7-10 Days $60.92
5   85-0491-3 Ptcr, Motor Start, 36 Amp Ships in 1-2 Days $50.77
6 Compressor Run Capacitor 60HZ   000001395 Manitowoc Run Capacitor 230V/50 Hz Ships In 1-2 Days $35.95
6 Compressor Run Capacitor 50Hz 000000028 Manitowoc Run Capacitor - 000000028 Ships In 1-2 Days $45.95
7 Terminal Board W/Wiring Harness
7a 230V/60/1   20-3241-3 Wiring Harness, 60 Hz 1ph Ships In 7-10 Days $211.38
7b 230V/60/3   2032433 Wiring Harness, 3ph Ships In 7-10 Days $117.23
7c 230V/50/1   20-3242-3 Wiring Harness, 50 Hz 1ph Ships In 7-10 Days $180.92
8   83-7324-3 Valve, Process Ships In 7-10 Days $126.46
9   54-7503-9 Locknut (Pkg of 10) Ships In 7-10 Days $12.00
10   6025591 Control Box, Tox Ships In 7-10 Days $90.46
11   76-2852-3 Control Box Cover W/ Labels Ships In 7-10 Days $69.95
12   85-0495-3 Bracket, Ptcr Mounting Ships In 7-10 Days $8.31
13   43-0225-3 Support Ships In 7-10 Days $7.38
14   60-2495-1 Capacitor Bracket Only Ships In 7-10 Days $7.38
15 52-0216-9 Ph Hx Wash Head (Pkg of 6) - 52-0216-9 In Stock $7.95
16 52-0206-9 Sl Hex Hd Screw (Pkg of 12) Ships In 7-10 Days $10.15
