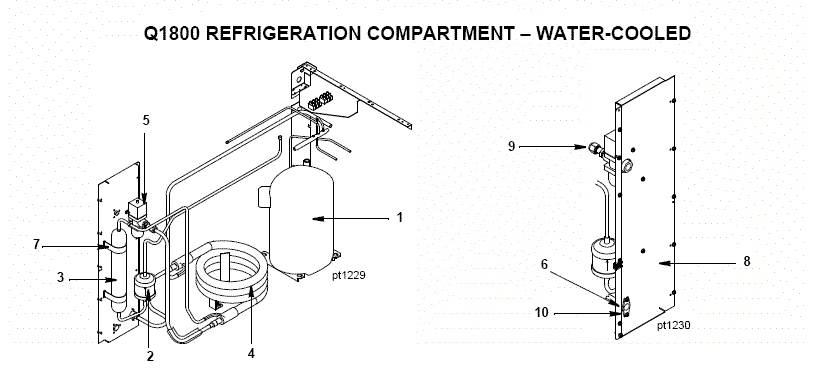

Manitowoc QY1805W Parts Diagram

Currently Viewing: Q1800 Water Cooled > Go Back To Other Parts Lists

Parts List Begins Below The Diagram Image

Jump To The Parts List

click to open the full-size image in a new window

Item		Part#	Description	Stock	Price	Qty
1 Refer To Common Parts
2		89-3027-9	Manitowoc Drier 89-3027-9	Ships In 1-2 Days	$62.77
3		89-0035-3	Receiver 2-1/8OD X 15, 3/8 Port	Ships In 7-10 Days	$105.23
4		000001508	Manitowoc Condenser, Water - 000001508	Ships In 7-10 Days	$1,123.38
5		83-7212-3	Water Reg Valve V46AB-29D	Ships in 1-2 Days	$273.23
6		87-0608-3	Adapter, .50ID X .63OD 1/2NPTF	Ships In 7-10 Days	$13.85
7		6000541	Receiver Strap	Ships In 7-10 Days	$13.85
8		6019051	Panel, Wtr/Rem Coupling	Ships In 7-10 Days	$64.62
9		83-3419-3	Straight Fitting-Brass	Ships In 7-10 Days	$11.95
10		52-0206-9	Sl Hex Hd Screw (Pkg of 12)	Ships In 7-10 Days	$10.15
