Manitowoc QD672C Ice Machine Parts Diagram

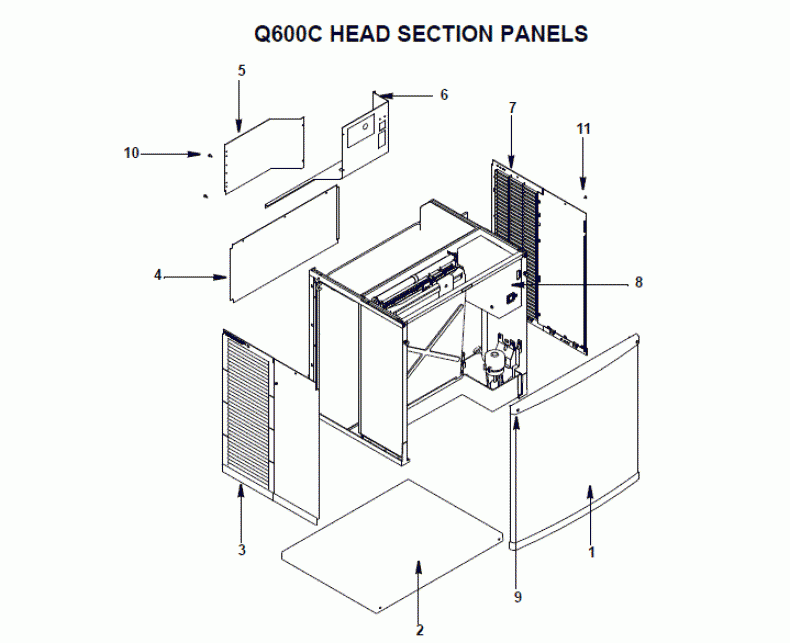

Currently Viewing: Q600C Head Section Panels > Go Back To Other Parts Lists

Parts List Begins Below The Diagram Image

Jump To The Parts List

click to open the full-size image in a new window

Item		Part#	Description	Stock	Price	Qty
1		76-2853-3	Front Panel Assy Q450/600	In Stock	$505.00
2		43-0331-3	Cover, Top, 30	Ships In 7-10 Days	$141.23
3		76-2830-3	LH Side Panel Assy	Ships In 7-10 Days	$196.62
4		6038161	Panel, Back	Ships In 7-10 Days	$37.85
5		6039971	Panel, Service Valve Back	Ships In 7-10 Days	$36.00
6		6039951	Panel, Service Valve	Ships In 7-10 Days	$84.92
7		76-2831-3	RH Side Panel Assy	Ships In 7-10 Days	$192.92
8		76-2852-3	Control Box Cover W/ Labels	Ships In 7-10 Days	$69.95
9 Front Panel Screw		51-1901-9	Screw, #8 X 1.75 Type B Pkg 6	Ships In 7-10 Days	$12.00
9a Washer		55-7338-9	Flat Washer-Nylon-Pkg of 12	Ships In 7-10 Days	$7.95
9b O-Ring		56-4827-9	Retainer, #8 Nylon Screw Pkg12	Ships In 7-10 Days	$6.95
9c Speed Nut Assembly		54-7303-9	Speed Nut, J Type C80388 Pkg12	Ships In 7-10 Days	$9.95
10		52-0206-9	Sl Hex Hd Screw (Pkg of 12)	Ships In 7-10 Days	$10.15
11		50-2350-9	Screw Pkg of 6, P/N 5023503	Ships In 7-10 Days	$7.38
