You Are Here: Home > Manitowoc QR870C Ice Machine Parts Diagram

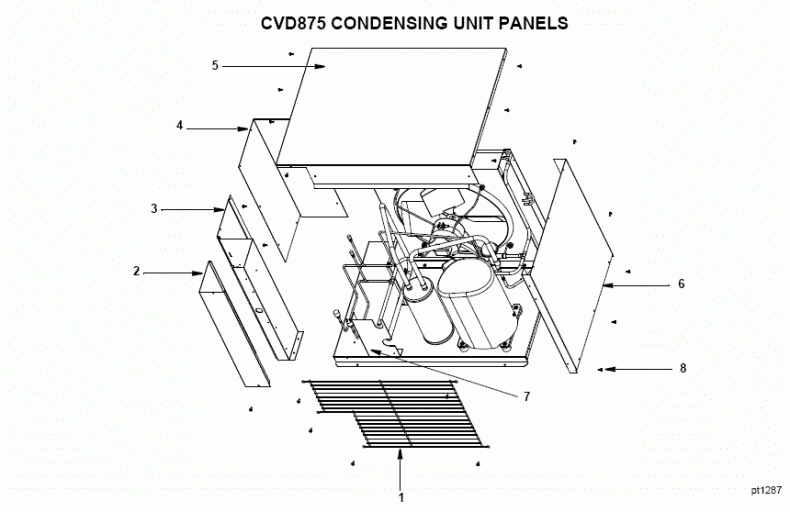

Manitowoc QR870C Ice Machine Parts Diagram
Currently Viewing: CVD875 Panels  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Jump To The Parts List
click to open the full-size image in a new window
Item   Part# Description Stock Price Qty
1   3406893 Guard, Condenser Fan Ships In 7-10 Days $59.08
2   6040171 Cover, Control Box Ships In 7-10 Days $48.92
3   6037071 Panel, Control Box Ships In 7-10 Days $80.31
4   6037051 Panel, LH Side Ships In 7-10 Days $38.77
5   6034751 Cover, Top Ships In 7-10 Days $89.54
6   6034701 Panel, RH Side Ships In 7-10 Days $57.23
7   6042261 Shield, Tube Ships In 7-10 Days $17.54
8 52-0206-9 Sl Hex Hd Screw (Pkg of 12) Ships In 7-10 Days $10.15
