Manitowoc QY1474C Ice Machine Parts Diagram

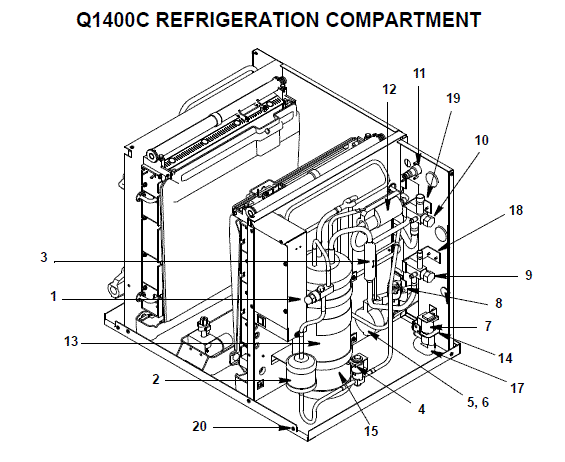

Currently Viewing: Q1400C Refrigeration Compartment  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   83-7316-9 Valve, Manual Shut Off, 3/8" - 83-7316-9 Ships In 7-10 Days $65.54
2   89-3027-9 Drier - REPLACED BY 8930279 Ships 1 - 2 Days $54.00
3   83-7315-9 Check Valve (Service) Ships In 7-10 Days $58.15
4 Liquid Line Solenoid Valve
4a 115V Complete Assembly (Danfoss)   76-3005-1 Solenoid Vlv Evu6 .50x.38 115V Ships In 1-2 Days $147.69
4b 115V Coil Only (Danfoss)   000005156 Coil Only 115V Danfoss In Stock $32.95
4c 115V Coil Only (Alco) 24-0436-3 Alco 115V Solenoid Valve Coil Ships In 1-2 Days $88.62
4d 230V/50-60Hz Complete Assembly   76-3011-1 Valve, Solenoid 220V - 76-3011-1 Ships In 7-10 Days $147.69
4e 230V/50-60Hz Coil Only (Danfoss)   000005157 Coil Only 230V Danfoss - 000005157 Ships In 7-10 Days $35.31
4f 230V/50-60Hz Coil Only (Alco) 24-0448-3 Solenoid Coil AMS 208/240V Ships In 7-10 Days $87.95
5   76-0052-3 Kit Exp Vlv Danfoss Q1400 Ships In 1-2 Days $117.23
6   40-0721-3 Insulation, Boot - TXV Body Ships In 7-10 Days $23.08
7 Dump Valve
7a 115V 000001767 Manitowoc Dump Valve (120V) In Stock $65.95
7b 230V/50Hz 000001768 Manitowoc Dump Valve W/230V Coil Ships In 1-2 Days $67.95
8 Harvest Valve (All Replaced With Alco)
8a 115v Complete Assembly   24-0543-3 Q1400 Solenoid Valve EVU6 115V - 24-0543-3 Ships In 7-10 Days $146.77
8b 115V Coil Only 24-0436-3 Alco 115V Solenoid Valve Coil Ships In 1-2 Days $88.62
8c 230V/50Hz Complete Assembly   24-0504-3 Solenoid Valve 200RB4t3 Ships In 7-10 Days $159.69
8d 230V/50Hz Coil Only 24-0448-3 Solenoid Coil AMS 208/240V Ships In 7-10 Days $87.95
9   83-7327-3 Valve, Manual Shutoff .500 Ships In 7-10 Days $48.92
10   83-7328-3 Valve, Manual Shutoff .750 Ships In 7-10 Days $53.54
10a   4007403 Insulation, Valve Boot Ships In 7-10 Days $18.46
11   87-0609-3 Female Wing Adaptor - 87-0609-3 Ships In 1-2 Days $13.95
12   40-0720-3 Insulation, TXV Bulb - 40-0720-3 Ships in 1-2 Days $14.95
13   76-2959-3 Rec Replacement Assy CVD Ships In 7-10 Days $247.38
14   6036271 Manitowoc Dump Valve Bracket Ships In 7-10 Days $13.95
15   6307214 Receiver MTG Strap Ships In 7-10 Days $13.85
16   87-0608-3 Adapter, .50ID X .63OD 1/2NPTF Ships In 7-10 Days $13.85
17   4421493 Manitowoc White Vinyl Drain Tube Ships In 7-10 Days $10.25
18   6036721 Manitowoc Bracket, 1/2 In. Shut Off Valve Ships In 7-10 Days $10.25
19   6036261 Manitowoc Bracket,Suction Line Shut Off Valve Ships In 7-10 Days $12.00
20 52-0209-9 Phil Flat Hd Screw Pkg of 12 - Obsolete
21 Wiring Harness - Control Box to Dump Valve and Cool Vapor Valve   2001813 Manitowoc Wiring Harness Ships In 7-10 Days $60.00
