Manitowoc QY1474C Ice Machine Parts Diagram

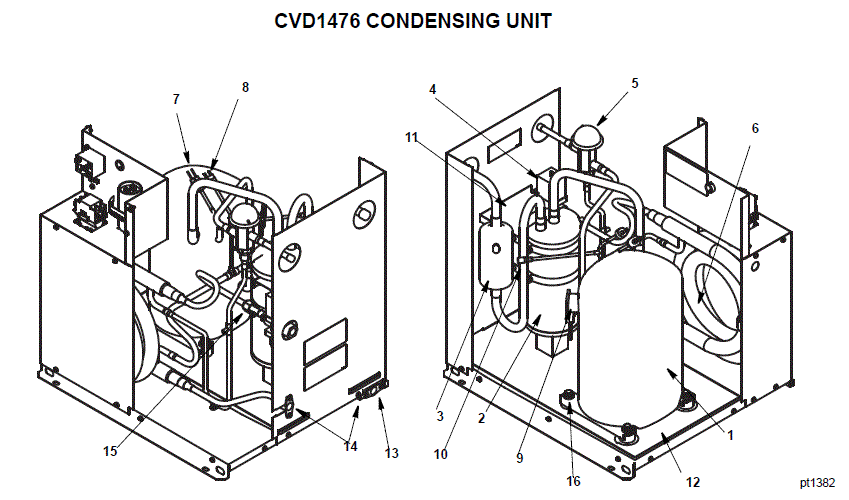

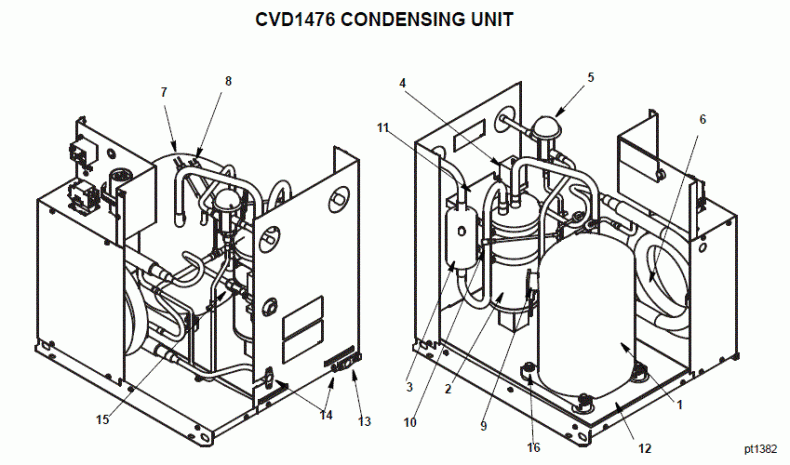

Currently Viewing: CVD1476 Condensing Unit Part 1  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1 Compressor
1a 230V/60Hz/1   76-0162-3 Compressor - 76-0162-3
1b 230V/60Hz/3   7601633 Comp Assy CVD1476 208-230/60/3
2   82-5143-3 Accumulator, Suction - Replaced By 000007281 Ships in 1-2 Days $162.95
3   82-5054-9 Suction Filter - 82-5054-9 Ships In 1-2 Days $113.54
4 Water Reg Valve
4a 150psig rated   8252403 Valve, Water Reg V46ab-31d 150 psig Ships In 7-10 Days $265.85
4b 350 psig rated (High Pressure Option)   8372173 Water Reg Valve, High Pressure 350 psig Ships In 7-10 Days $1,465.85
5   82-5116-3 Valve, Head Pressure Control Ships In 7-10 Days $166.15
6   82-5128-3 Condenser, Wtr - Cupronickel Ships In 7-10 Days $891.69
7   20-0222-9 Low Pressure Cut Out Control - 20-0222-9 Ships in 1-2 Days $47.95
8 20-0124-3 High Pressure Cut out AR Control Ships In 1-2 Days $60.92
9   2006239 Compressor Wiring Harness Ships In 7-10 Days $24.95
10   8373253 Valve, Access Ships In 7-10 Days $12.92
11   6055571 Bracket, Accumulator Mounting Ships In 7-10 Days $33.23
12   4005143 Pan, Condensate Ships In 7-10 Days $199.38
13   4008443 Tube, White Vinyl - Drain Ships In 7-10 Days $7.50
14   87-0608-3 Adapter, .50ID X .63OD 1/2NPTF Ships In 7-10 Days $13.85
15   83-3419-3 Straight Fitting-Brass Ships In 7-10 Days $11.95
16 Compressor Mounting
16a Bolt   5000173 Bolt, Compressor - 2.00 Ships In 7-10 Days $4.95
16b Grommet   8503069 Rubber Grommet (Pkg of 4) Ships In 7-10 Days $9.23
16c Washer   5573099 Flatwasher (Pkg of 10) Ships In 7-10 Days $6.46
16d Metal Sleeve   5000109 Sleeve (Pkg of 4) Ships In 7-10 Days $6.50
