Manitowoc QRDUALC Ice Machine Parts Diagram
Currently Viewing: CVD1875 Condensing Unit  > Go Back To Other Parts Lists

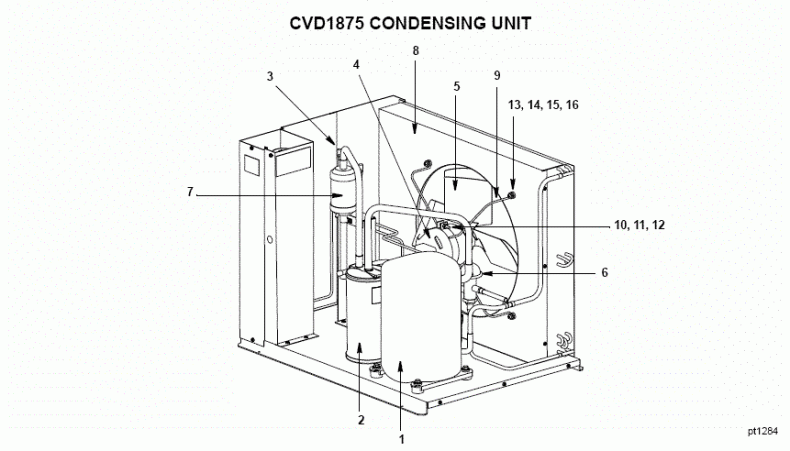

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1 Compressor
1a 230V/60Hz/1   76-0056-3 Compressor - 76-0056-3
1b 230V/60Hz/3   76-0057-3 Compressor - 76-0057-3
1c 220V/50Hz/1   7600583 Compressor 220-240/50/1 CVD1875
2   82-5143-3 Accumulator, Suction - Replaced By 000007281 Ships in 1-2 Days $162.95
3   8373253 Valve, Access Ships In 7-10 Days $12.92
4 Fan Motor
4a 230V/50-60Hz/1   20-0018-9 Manitowoc Fan Motor 230V/60Hz/1-3 Phase Ships in 1-2 Days $312.00
4b Fan Blade   82-5008-3 Blade, Cond Fan Ships In 7-10 Days $80.31
5   8851493 Manitowoc Condenser, Air, 24.00 X 36.00 Ships In 7-10 Days $908.31
6   82-5007-3 Valve, Head Pressure Control Ships In 7-10 Days $296.31
7   82-5055-9 Filter, Suction Line Ships In 1-2 Days $106.15
8   6038691 Shroud, Fan Ships In 7-10 Days $204.00
9   3000253 Mount, Fan Motor Ships In 7-10 Days $46.15
10   5033589 Screw 1/4x1.75 (Pkg of 6) Ships In 7-10 Days $8.31
11   55-4511-9 Lockwasher (Pkg of 10) - 55-4511-9 In Stock $6.95
12   5429529 Hexnut 1/4-20 (Pkg of 12) - Obsolete
13   5033589 Screw 1/4x1.75 (Pkg of 6) Ships In 7-10 Days $8.31
14   55-4511-9 Lockwasher (Pkg of 10) - 55-4511-9 In Stock $6.95
15   5573059 Washer (Pkg of 10) Ships In 7-10 Days $6.46
16   54-2955-9 Rubber Well-Nut (Pkg of 10) Ships In 7-10 Days $27.95
