You Are Here: Home > Manitowoc QRDUALC Ice Machine Parts Diagram
Manitowoc QRDUALC Ice Machine Parts Diagram

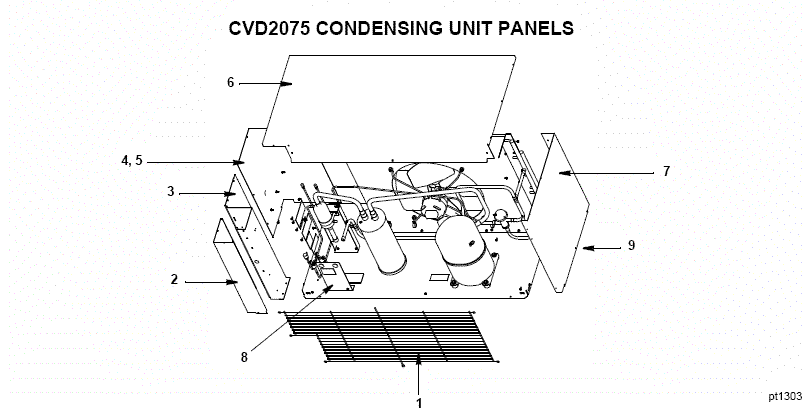

Currently Viewing: CVD2075/1875 Unit Panels  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Jump To The Parts List
click to open the full-size image in a new window
Item   Part# Description Stock Price Qty
1   3000143 Guard, Condenser Fan Ships In 7-10 Days $96.00
2   6040171 Cover, Control Box Ships In 7-10 Days $48.92
3   6037071 Panel, Control Box Ships In 7-10 Days $80.31
4   6038761 Panel, LH Side Ships In 7-10 Days $87.69
5   6038771 Panel, LH Side Ships In 7-10 Days $49.85
6   6038751 Panel, Top Ships In 7-10 Days $203.08
7   6038741 Panel, RH Side Ships In 7-10 Days $97.85
8   6042261 Shield, Tube Ships In 7-10 Days $17.54
9 52-0206-9 Sl Hex Hd Screw (Pkg of 12) Ships In 7-10 Days $10.15
