Manitowoc QRDUALC Ice Machine Parts Diagram

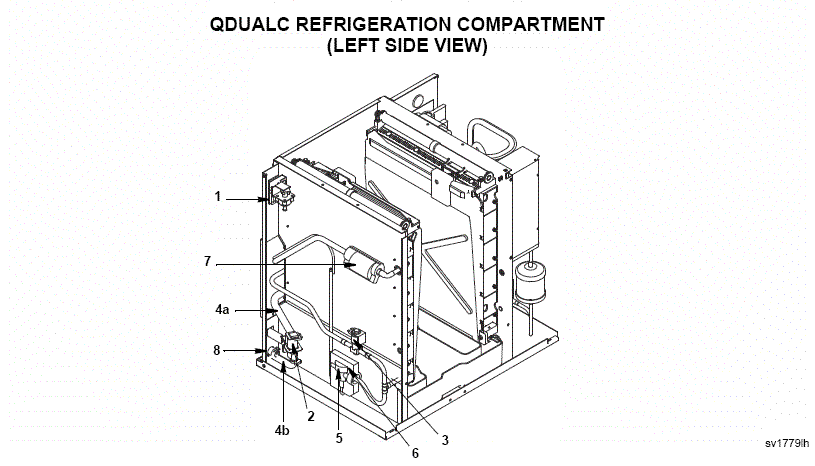

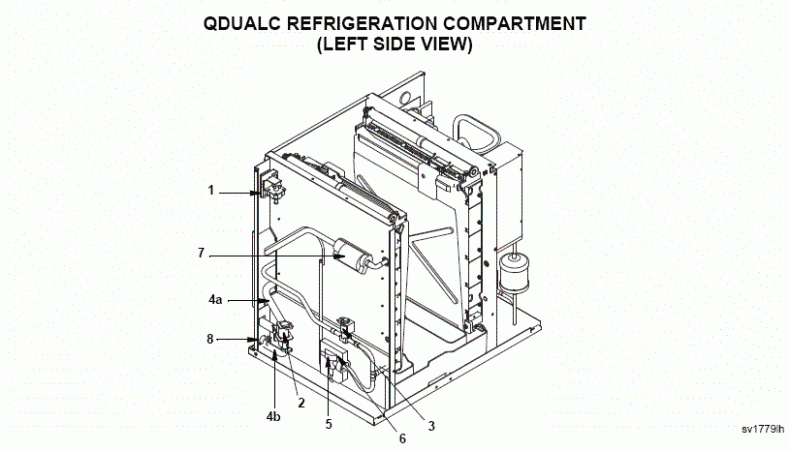

Currently Viewing: QDUALC Refrigeration Compartment (Left Side View)  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1 Water Inlet Valve
1a 115V/60   24-0000-3 Water Inlet Valve, 110V 50/60 Hz - 24-0000-3 Ships in 1-2 Days $97.95
1b 220V/50   24-0001-3 Water Inlet Valve, 220-240V - 24-0001-3 Ships in 1-2 Days $109.95
2 Dump Valve
2a 115V/60 000001767 Manitowoc Dump Valve (120V) In Stock $65.95
2b 220V/50 000001768 Manitowoc Dump Valve W/230V Coil Ships In 1-2 Days $67.95
3 Cool Vapor Valve
3a 115V/60   24-0537-3 Valve, Solenoid 115V Ships In 1-2 Days $158.95
3b 220V/50   24-0536-3 Solenoid Valve 230V Ships In 7-10 Days $142.15
4 Dump Valve Tubing
4a Water Pump to Dump Valve   4012713 Tube, Vinyl Ships In 7-10 Days $20.31
4b Dump Valve to Female Adapter   4000223 Tube, Vinyl, Drain Ships In 7-10 Days $10.25
4c Union Connector   83-9005-3 Union Connector White Nylon Ships In 7-10 Days $7.38
5   76-0054-3 Expansion Valve - 76-0054-3 Ships In 7-10 Days $116.31
6   40-0040-3 Insulation, TXV Boot Ships In 7-10 Days $19.38
7   40-0720-3 Insulation, TXV Bulb - 40-0720-3 Ships in 1-2 Days $14.95
8   87-0608-3 Adapter, .50ID X .63OD 1/2NPTF Ships In 7-10 Days $13.85
