Manitowoc S300 Series Ice Machine Parts Diagram - Models in series: SD0302A, SD0303W, SY0304A, SY0305W, SR0300A, SR0301W
Currently Viewing: S300 Control Box  > Go Back To Other Parts Lists

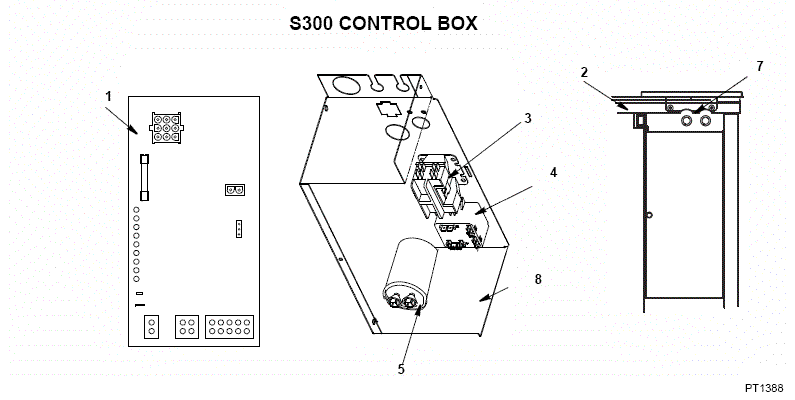

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1)......Control Board (for use with all voltages) 20-0619-9 Manitowoc Control Board - 20-0619-9 In Stock $359.57
1a).....7 Amp Fuse – Mounted on Control Board   25-1100-3 Fuse 7 Amp 5 Pack 1 Week To Ship $39.95
2).......Toggle Switch Only 20-0793-9 Toggle Switch 1 Week To Ship $19.75
2a).....Toggle Switch Wiring Harness   20-0807-9 Wiring Harness - Toggle Switch
2b)..... Toggle Switch Box   40-1163-9 Toggle Switch Box
3)...... Contactor
3a).....115V/60/1 20-0658-9 Contactor, 115V, 1 Ph W/Shunt - 20-0658-9 1 Week To Ship $35.15
3b)..... 230V/50-60/1   20-0659-9 Contactor, 208-230, 1ph W/Shunt - 20-0659-9 1 Week To Ship $34.45
4 Start Potential Relay (After Serial Number 110704351)
4a)..... 115V/60/1 000002671 Manitowoc Start Potential Relay 115V/60Hz
4b)..... 230V/50-60/1   20-0792-9 Start Relay - 230V/50-60Hz/1 - 20-0792-9
4)...... Start Potential Relay (Before Serial# 110704351)
4a)..... 115V/60/1   20-0205-3 Start Relay - 115V/60/1 - 20-0205-3 1 Week To Ship $49.90
4b)..... 230V/50-60/1   2002103 Relay, Start Potential
5)...... Compressor Start Capacitor (After Serial Number 110704351)
5a)..... 115V/60/1 20-0048-3 Manitowoc Start Capacitor 115V/60Hz
5b)..... 230V/50-60/1   000000022 Manitowoc Start Capacitor 230V/50-60Hz/1 - 000000022
5)......Compressor Start Capacitor (Before Serial Number 110704351)
5a)..... 115V/60/1   85-0577-3 Capacitor, Start 378-454/125V
5b)..... 230V/50-60/1   85-0372-3 Start Cap 72-88 MFD 330V
6)...... Compressor Run Capacitor (After Serial Number 110704351)
6a).....115V/60/1   20-1014-3 Run Capacitor -115V - 20-1014-3 1 Week To Ship $49.18
6b)..... 230V/50-60/1   2009493 Run Capacitor - 230V/50-60Hz/1 - 2009493
7)......Refrigeration Service Valve Assembly   83-7326-3 Valve, Access
8)......Control Box   76-0214-3 Control Box
8a).....Control Box Cover (Not shown)   7602153 Manitowoc Control Box Cover 1 Week To Ship $24.95
9)......Start Potential Relay Mounting Screw #6 x 3/8   5004129 Screw-(Pkg of 10)
10).....Control Board Mounting Supports (Not shown)   43-0225-3 Support
11)..... Capacitor Mounting
11a).... Strap (Before Serial# 110704351)   6024953 Capacitor Bracket Only Stainless
11b).... Bracket (After Serial# 110704351)   6021601 Capacitor Bracket Only
12).....Screw, #10-24 x .50 Ground 52-0216-9 Ph Hx Wash Head (Pkg of 6) - 52-0216-9
12a)....Star Washer   55-7320-9 Lockwasher (Pkg of 10)
13).....Screw, #10-24 x .50 52-0206-9 Sl Hex Hd Screw (Pkg of 12)
14)..... Control Box Wiring Harness (Before Serial# 110704351)
14a).... 115V/60/1   2008159 Wiring Harness - 115/60/1
14b).... 230V/50/1   2008179 Wiring Harness - 230/50/1
14c).... 230V/60/1   2008169 Wiring Harness - 230/60/1
15)..... Control Box Wiring Harness (After Serial# 110704351)
15a).... 115V/60/1   2008273 Wiring Harness - 115/60/1
15b).... 230V/50/1   2008293 Wiring Harness - 230/50
15c).... 230V/60/1   2008293 Wiring Harness - 230/60
16).....Ground Wire   2008699 Ground Wire
