Manitowoc SR0300A Ice Machine Parts Diagram

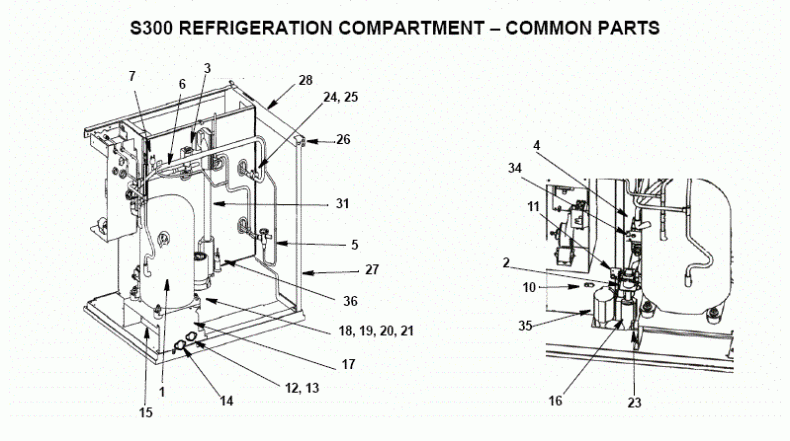

Currently Viewing: S300 Refrigeration Compartment- Common Parts  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1 Compressor - Before Serial# 110704351
1a 115V/60/1   76-0136-3 Compressor, Danfoss 115/60/1 - 76-0136-3
1b 230V/50-60Hz/1   7601373 Q0280/370 230V Danfoss Compr
1 Compressor - After Serial# 110704351
1a 115V/60/1 000003921 Compressor Assembly 115V/60Hz/1
1b 230V/5-60Hz/1 000003922 Compressor Assembly 230V/50-60Hz/1
2 Water Dump Valve
2a 115V/60/1 000001767 Manitowoc Dump Valve (120V) In Stock $65.95
2b 230V/50-60Hz/1 000001768 Manitowoc Dump Valve W/230V Coil Ships In 1-2 Days $67.95
3 Harvest Valve Including Coil
3a 115V/60/1 76-3001-1 Solenoid Valve - 76-3001-1 115V Ships In 1-2 Days $135.69
3b 230V/50-60Hz/1   7630071 Solenoid Vlv Evu3 .38x.25 230V Ships In 7-10 Days $123.69
3 Havest Valve Coil Only
3a 115V/60/1   000005156 Coil Only 115V Danfoss In Stock $32.95
3b 230V/50-60Hz/1   000005157 Coil Only 230V Danfoss - 000005157 Ships In 7-10 Days $35.31
4 Water Inlet Valve - After Serial# 110704351
4a 115V/60/1 000000375 Manitowoc Water Inlet Valve 115/60 In Stock $66.95
4b 230V/50-60Hz/1   000000376 Manitowoc Water Inlet Valve- 230V Ships In 1-2 Days $57.23
4 Water Inlet Valve - Before Serial# 110704351
4a 115V/60/1 000000377 Water Inlet Valve For S Series 000000377 - Replaced by 000007965
4b 230V/50-60Hz/1 000000378 Water Inlet Valve For S Series 000000378
5 Expansion Valve 76-0017-3 Expansion Valve - 76-0017-3 Ships In 7-10 Days $129.95
5a Body Insulation Boot   40-1340-9 Insulation - TXV Boot Ships In 7-10 Days $15.69
5b Bulb Insulation Boot   40-0720-3 Insulation, TXV Bulb - 40-0720-3 Ships in 1-2 Days $14.95
6   8251003 Manitowoc Manifold/Strainer, 4 Port Ships In 7-10 Days $43.38
7 20-0124-3 High Pressure Cut out AR Control Ships In 1-2 Days $60.92
8 Electric Box on Rear of Machine   6063989 Electrical Box Ships In 7-10 Days $20.35
8a Cover   6063979 Cover - Electrical Box Ships In 7-10 Days $18.50
8b Terminal Block   20-0614-3 Terminal Block - 20-0614-3 Ships In 7-10 Days $18.46
8c Ground Screw 52-0216-9 Ph Hx Wash Head (Pkg of 6) - 52-0216-9 In Stock $7.95
9 Compressor Compartment Wiring Harness
9a Water   2007329 Wiring Harness - Water Ships In 7-10 Days $33.23
9b Air   2007319 Wiring Harness - Air Ships In 7-10 Days $34.15
10 Bin Switch 000007888 Magnetic Bin Switch Ships In 1-2 Days $29.95
11   6058459 Mounting Bracket Ships In 7-10 Days $8.50
12   87-0608-3 Adapter, .50ID X .63OD 1/2NPTF Ships In 7-10 Days $13.85
13   13-6096-1 Connector, Male, 1/4od X 1/8nptf Ships In 7-10 Days $12.00
14   87-0609-3 Female Wing Adaptor - 87-0609-3 Ships In 1-2 Days $13.95
15 44-2038-3 Vinyl Tube 5/8" ID- 44-2038-3 In Stock $8.95
16 44-2038-3 Vinyl Tube 5/8" ID- 44-2038-3 In Stock $8.95
17   6061709 Compressor Mounting Base Ships In 7-10 Days $73.85
18   5000899 Manitowoc Grommet (Pkg. of 4) Ships In 7-10 Days $9.23
19   5000909 Manitowoc Sleeve (Pkg. of 4) - 50-0090-9 Ships In 7-10 Days $7.50
20   5004999 Bolt -(Pkg of 4) Ships In 7-10 Days $4.75
21   5005009 Nut - Pkg of 4 Ships In 7-10 Days $4.75
22   2008559 Wiring Harness - Compressor Ships In 7-10 Days $24.00
23 56-5070-9 Manitowoc Clamp .799/.899 ID Ships In 7-10 Days $10.00
24   56-5052-9 Ss Wormdrive Clamp (Pkg of 2) Ships In 7-10 Days $10.00
25   3000833 Strap, Copper - TXV Bulb 3/8od Ships In 7-10 Days $4.75
26 52-0206-9 Sl Hex Hd Screw (Pkg of 12) Ships In 7-10 Days $10.15
27   6058379 Left Hand Corner Post Ships In 7-10 Days $19.38
28   60-6864-9 Left Hand Top Channel Ships In 7-10 Days $17.54
29   6063509 Right Hand Cornerpost Ships In 7-10 Days $27.69
30   606257-9 RH Top Channel Ships In 7-10 Days $18.46
31 000000867 Overmolded Tube Assembly - Replaced By 000003403
31a 56-5060-9 Manitowoc Clamp .859/.989 ID Ships In 7-10 Days $10.00
31b 56-5070-9 Manitowoc Clamp .799/.899 ID Ships In 7-10 Days $10.00
32   40-1043-9 Water Inlet Tube Ships In 7-10 Days $8.31
33   13-6098-9 Connector Ships In 7-10 Days $11.95
34   6058459 Mounting Bracket Ships In 7-10 Days $8.50
35   000002473 Manitowoc Check Valve Replacement Kit Ships In 1-2 Days $17.95
36 20-0655-9 Holder, Water Level Probe Ships In 7-10 Days $6.95
36a 52-0206-9 Sl Hex Hd Screw (Pkg of 12) Ships In 7-10 Days $10.15
