Manitowoc SR0300A Ice Machine Parts Diagram

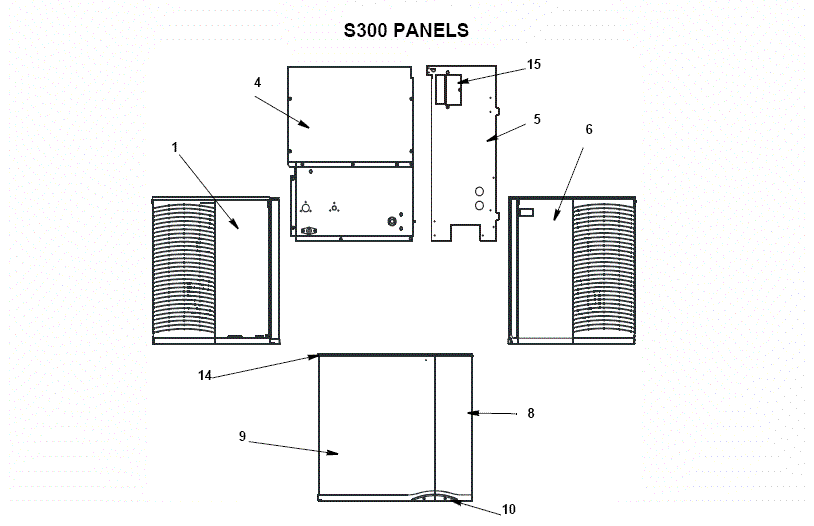

Currently Viewing: S300 Panels  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   76-2829-3 Front Panel Assy Ships In 7-10 Days $419.08
2   6061069 Air Baffle Ships In 7-10 Days $24.00
3   30-0569-9 Air Filter Ships In 7-10 Days $15.95
4   6061049 Back Panel - Water/Remote Ships In 7-10 Days $72.00
5   6060879 Back Panel Ships In 7-10 Days $46.15
6   60-6050-9 Right Side Panel In Stock $109.95
7a Up to Serial# 110091847   00006699 Top Cover - 00006699 Ships In 7-10 Days $108.92
7b After Serial# 110091847   40-1548-3 Top Cover - 30" - Replaced by 000006699
8a Right Door Up to Serial# 110091847   60-6121-9 Right Door Ships In 7-10 Days $196.62
8b Right Door After Serial# 110091847   6071621 Right Hand Door Panel - 30" Ships In 7-10 Days $203.08
9a Left Door Up to Serial# 110091847   606120-9 Left Door Ships In 7-10 Days $304.62
9b Left Door After Serial# 110091847   6071591 Left Hand Door Panel - 30" Ships In 7-10 Days $304.62
10   50-0489-9 Screw, Pkg of 4
11   000000295 Manitowoc Top Frame 000000295 Ships In 7-10 Days $49.95
11a   5005379 Screw, Pkg of 10 - 5005379 Ships In 7-10 Days $4.62
11b   5005099 Screw, Pkg of 6 Ships In 7-10 Days $7.00
11c   30-0602-9 Front Panel Striker Ships In 7-10 Days $25.85
12   76-0226-3 Bottom Frame Ships In 7-10 Days $24.95
12a   5005379 Screw, Pkg of 10 - 5005379 Ships In 7-10 Days $4.62
12b 52-0209-9 Phil Flat Hd Screw Pkg of 12 - Obsolete
13 60-6236-9 Manitowoc Door Catch Bracket Ships In 7-10 Days $6.95
13a   50-2624-9 Ctl Panel Screw (Pkg of 10) Ships In 7-10 Days $7.38
14   30-0557-9 LH Door Pivot Leaf Hinge Ships In 7-10 Days $9.95
14a   5005379 Screw, Pkg of 10 - 5005379 Ships In 7-10 Days $4.62
15   6063979 Cover - Electrical Box Ships In 7-10 Days $18.50
16   40-0459-3 Holder, Sachet Bags Ships In 7-10 Days $19.38
16a   5004799 Screw (Each)
