Manitowoc SR0301W Ice Machine Parts Diagram

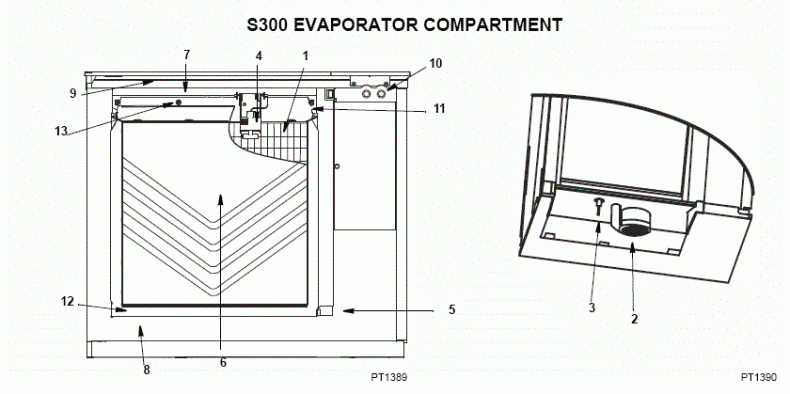

Currently Viewing: S300 Evaporator  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1 Evaporator Assembly
1a Dice Cube   7602699 Evaporator Assembly SD0300 Ships In 7-10 Days $679.38
1b Half Dice Cube   76-0270-9 Evaporator Assembly SY0300 Ships In 7-10 Days $730.15
2 Water Pump
2a 115V/60/1   20-0767-9 Water Pump - 115/60/1 Ships In 1-2 Days $208.62
2b 230V/50/1   2007669 Water Pump-230/50/1 Ships In 7-10 Days $209.54
2c 230V/60/1   2007659 Water Pump - 230/60/1 Ships In 7-10 Days $209.54
3 2006549 Manitowoc Water Level Probe In Stock $26.95
3a   20-0798-9 Wire Lead Control Box to Probe Ships In 7-10 Days $13.85
4 20-0802-9 Manitowoc Ice Thickness Control Probe In Stock $54.95
5 000007888 Magnetic Bin Switch Ships In 1-2 Days $29.95
6   40-1114-9 Water Curtain Ships In 1-2 Days $39.95
7   76-0219-3 Water Distributor Assy Ships In 1-2 Days $48.00
7a   50-0464-9 O-Ring, Package of 6 Ships In 1-2 Days $5.00
8 Water Trough
8a After Serial# 110704351   000002106 Water (Sump) Trough - 000002106 Ships In 1-2 Days $32.95
8b Before Serial# 110704351   40-0360-9 Manitowoc Water Trough - 40-0360-9 Ships In 1-2 Days $35.08
9 Evaporator Top Filler Panel   40-0846-9 Evaporator Top Filler Panel Ships In 7-10 Days $52.62
9a Filler Panel Bracket   6064969 Filler Panel Bracket Ships In 7-10 Days $29.54
9b Bracket Screw 52-0209-9 Phil Flat Hd Screw Pkg of 12 - Obsolete
10   83-7326-3 Valve, Access Ships In 7-10 Days $10.15
11   76-0220-3 Evaporator Top Frame Assy Ships In 7-10 Days $60.92
12   76-0221-3 Condensate Drain Pan Ships In 7-10 Days $18.50
13   5004799 Screw (Each)
13a   50-0462-9 O-Ring Pkg of 10 Ships In 7-10 Days $5.00
14   50-0461-9 Screw #12-16 X .687 (Each) Ships In 7-10 Days $5.00
15   50-0465-9 O-Ring, Water Pump Base Ships In 7-10 Days $7.38
16   50-0467-9 O-Ring, Water Pump Outlet Ships In 7-10 Days $4.00
17   000001382 Vinyl Tubing 0.625 ID (Dump Valve To Drain Adapter) In Stock $12.95
17a   6038831 Tubing Insulation - 603883-1 Ships In 7-10 Days $12.95
