Manitowoc SR0301W Ice Machine Parts Diagram

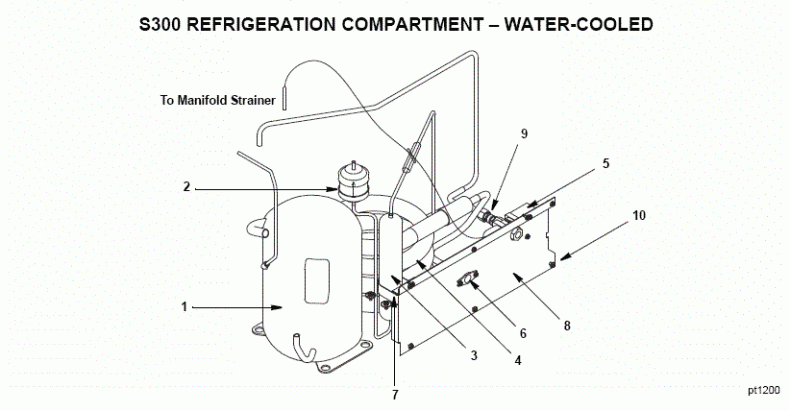

Currently Viewing: S300 Refrigeration Compartment- Water Cooled > Go Back To Other Parts Lists

Parts List Begins Below The Diagram Image

Item	Part#	Description	Stock	Price	Qty
1 Refer to Refrigeration Common Parts
2	89-3025-9	Manitowoc Drier - 89-3025-9	Ships In 1-2 Days	$47.08
3	12-0003-1	Receiver	Ships In 7-10 Days	$58.15
4	88-6531-3	Water Condenser	Ships In 7-10 Days	$443.08
5	83-7206-9	Water Regulating Valve - 83-7206-9	Ships In 1-2 Days	$231.69
6	87-0610-3	Adapter-1/2NPTX3/8ODF	Ships In 7-10 Days	$19.38
7	6000541	Receiver Strap	Ships In 7-10 Days	$13.85
8	6061739	Back Panel	Ships In 7-10 Days	$48.92
9	5002159	Elbow 3/8 MF x 3/8 MPT	Ships In 7-10 Days	$12.00
10	52-0206-9	Sl Hex Hd Screw (Pkg of 12)	Ships In 7-10 Days	$10.15
11	5573419	Washer, .234id X .875od (Pkg 10)	Ships In 7-10 Days	$7.39
12	6058653	Base, Water Condenser/Receiver Stainless Steel	Ships In 7-10 Days	$139.38
