You Are Here: Home > Manitowoc SR0321W Ice Machine Parts Diagram
Manitowoc SR0321W Ice Machine Parts Diagram

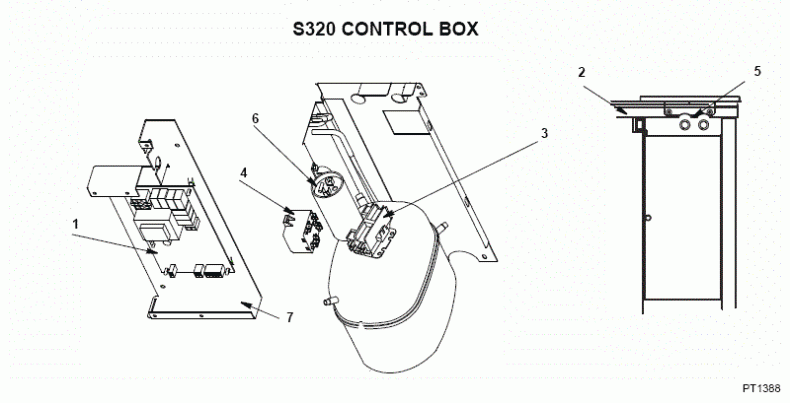

Currently Viewing: S320 Control Box  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1 20-0619-9 Manitowoc Control Board - 20-0619-9 In Stock $375.00
1a   25-1100-3 Fuse 7 Amp 5 Pack Ships In 1-2 Days $31.95
2 Switch Only   20-0793-9 Toggle Switch Ships In 1-2 Days $10.95
2a Wiring Harness   20-0807-9 Wiring Harness - Toggle Switch Ships In 7-10 Days $26.77
2b Switch Box   40-1163-9 Toggle Switch Box Ships In 7-10 Days $9.23
3 Contactor
3a 115V/60/1 20-0658-9 Contactor, 115V, 1 Ph W/Shunt - 20-0658-9 Ships In 1-2 Days $26.95
3b 230V/50-60/1   20-0659-9 Contactor, 208-230, 1ph W/Shunt - 20-0659-9 Ships in 1-2 Days $25.85
4 Start Relay
4a 115V/60/1   82-5103-3 Relay, Start - 115V Ships In 7-10 Days $24.92
4b 230V/50-60/1   2002243 Relay, Start - 230V Ships In 7-10 Days $24.00
5 Service Valve   83-7326-3 Valve, Access Ships In 7-10 Days $10.15
6 Start Capacitor
6a 115V/60/1   82-5102-3 Start Capacitor--G0150 - 82-5102-3 Ships In 1-2 Days $44.95
6b 230V/50-60Hz/1   82-5109-3 Capacitor, Start - 80 MFD Ships In 7-10 Days $65.23
7 Control Box   6063909 Box - Control Board Ships In 7-10 Days $30.46
7a Side Cover   7602739 Control Box Cover - Side Ships In 7-10 Days $31.38
7b Front Cover   6063929 Control Box Cover - Front Ships In 7-10 Days $10.25
8   43-0225-3 Support Ships In 7-10 Days $7.38
9   25-0016-9 Bushing-Pkg of 4 Ships In 7-10 Days $7.38
10   6063949 Control Box - Start Components Ships In 7-10 Days $61.85
11   5005309 Clip/Clamp - Start Capacitor Ships In 7-10 Days $8.50
12 52-0216-9 Ph Hx Wash Head (Pkg of 6) - 52-0216-9 In Stock $7.95
12a   55-7320-9 Lockwasher (Pkg of 10) Ships In 7-10 Days $7.00
13 52-0206-9 Sl Hex Hd Screw (Pkg of 12) Ships In 7-10 Days $10.15
14 Control Box Wiring Harness
14a 115V/60/1   2008739 Wiring Harness 115/60/1 Ships In 7-10 Days $53.54
14b 230V/60/1 2008749 Wiring Harness 230V/60Hz/1 Ships In 7-10 Days $52.75
14c 230V/50/1   2008759 Wiring Harness 230/50/1 Ships In 7-10 Days $127.38
14d Ground Wire   2008699 Ground Wire Ships In 7-10 Days $4.75
