Manitowoc SR0321W Ice Machine Parts Diagram

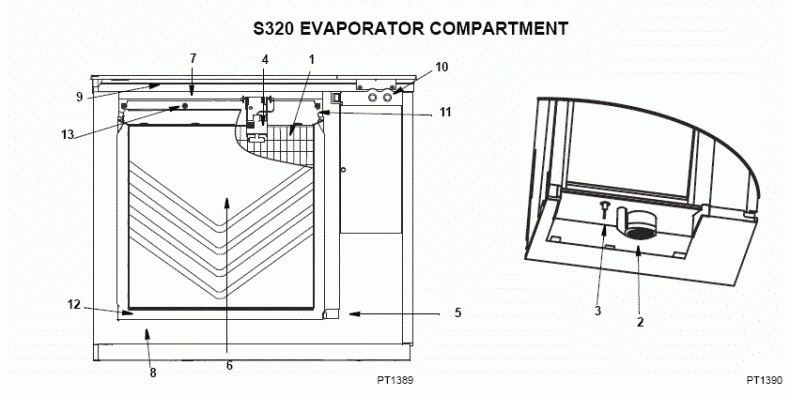

Currently Viewing: S320 Evaporator  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1 Evaporator Assembly
1a Dice Cube   7602769 Evaporator Assembly Full Dice Cube Ships In 7-10 Days $872.31
1b Half Dice Cube   76-0275-9 Evaporator Assembly SY0320, SY0420 Ships In 7-10 Days $1,072.62
2 Water Pump
2a 115V/60/1   20-0892-9 Water Pump 115/60/1 In Stock $199.38
2b 230V/50/1   2008939 Water Pump 230/60/1 Ships In 7-10 Days $209.54
2c 230V/60/1   20-0894-9 Water Pump 230/50/1 Ships In 7-10 Days $199.38
3 2006549 Manitowoc Water Level Probe In Stock $26.95
3a   20-0798-9 Wire Lead Control Box to Probe Ships In 7-10 Days $13.85
4 20-0802-9 Manitowoc Ice Thickness Control Probe In Stock $54.95
5 000007888 Magnetic Bin Switch Ships In 1-2 Days $29.95
6   40-1118-9 Water Curtain Ships In 1-2 Days $41.95
7   76-0278-9 Water Distribution Assy Ships In 1-2 Days $33.23
7a   50-0464-9 O-Ring, Package of 6 Ships In 1-2 Days $5.00
8 Water Trough   40-0914-9 Water Trough Ships In 1-2 Days $28.62
9 Evaporator Top Filler Panel   60-6538-9 Evaporator Top Filler Panel Ships In 7-10 Days $64.62
9a Filler Panel Bracket   60-6333-9 Stainless Steel Clamp Ships In 7-10 Days $14.77
9b Bracket Screw 52-0209-9 Phil Flat Hd Screw Pkg of 12 - Obsolete
10   83-7326-3 Valve, Access Ships In 7-10 Days $10.15
11   76-0279-9 Evaporator Top Molding Ships In 7-10 Days $49.85
12   7602779 Water Diverter 76-0277-9 Ships In 7-10 Days $15.75
13   5004799 Screw (Each)
13a   50-0462-9 O-Ring Pkg of 10 Ships In 7-10 Days $5.00
14   50-0461-9 Screw #12-16 X .687 (Each) Ships In 7-10 Days $5.00
15   50-0465-9 O-Ring, Water Pump Base Ships In 7-10 Days $7.38
16   50-0467-9 O-Ring, Water Pump Outlet Ships In 7-10 Days $4.00
17   000001382 Vinyl Tubing 0.625 ID (Dump Valve To Drain Adapter) In Stock $12.95
17a   6038831 Tubing Insulation - 603883-1 Ships In 7-10 Days $12.95
