Manitowoc SR0321W Ice Machine Parts Diagram
Currently Viewing: S320 Panels  > Go Back To Other Parts Lists

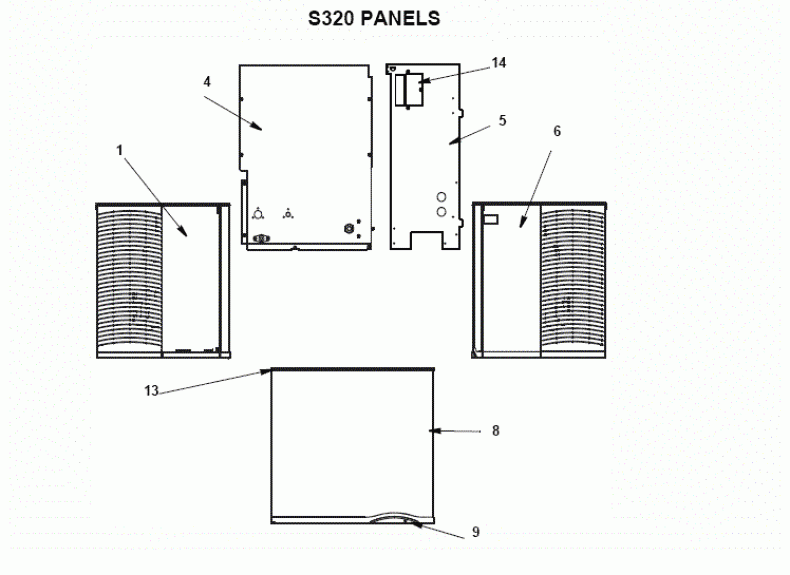

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   606053-9 Left Hand Side Panel Ships In 7-10 Days $106.15
2 Air Baffle (Not Shown)   6061069 Air Baffle Ships In 7-10 Days $24.00
3 Air Filter(Not Shown)   30-0569-9 Air Filter Ships In 7-10 Days $15.95
4   6063699 Back Panel - Water Ships In 7-10 Days $58.15
5   6063609 Back Panel - Air Ships In 7-10 Days $35.08
6   606052-9 Right Side Panel Ships In 7-10 Days $106.15
7   40-1202-9 Top Cover Ships In 7-10 Days $90.46
8   60-6344-9 Front Door Ships In 7-10 Days $391.38
9   50-0489-9 Screw, Pkg of 4
10 Front Top Support (Not Shown)   30-0573-9 Front Top Support Ships In 7-10 Days $55.38
10a   5005379 Screw, Pkg of 10 - 5005379 Ships In 7-10 Days $4.62
10b   30-0602-9 Front Panel Striker Ships In 7-10 Days $25.85
11 Bottom Door Frame (Not Shown)   76-0282-9 Bottom Door Frame Ships In 7-10 Days $19.38
11a   5005099 Screw, Pkg of 6 Ships In 7-10 Days $7.00
11b 52-0209-9 Phil Flat Hd Screw Pkg of 12 - Obsolete
12 Door Catch Bracket - Right (Not Shown)   40-1265-9 Catch, Front Door Ships In 7-10 Days $4.62
12a   50-0489-9 Screw, Pkg of 4
13 (Top or Bottom)   30-0557-9 LH Door Pivot Leaf Hinge Ships In 7-10 Days $9.95
13a   5005379 Screw, Pkg of 10 - 5005379 Ships In 7-10 Days $4.62
14   6063999 Electrical Box Cover Ships In 7-10 Days $13.95
15   40-0459-3 Holder, Sachet Bags Ships In 7-10 Days $19.38
15a   5004799 Screw (Each)
