Manitowoc SD0592N Series Ice Machine Parts Diagram

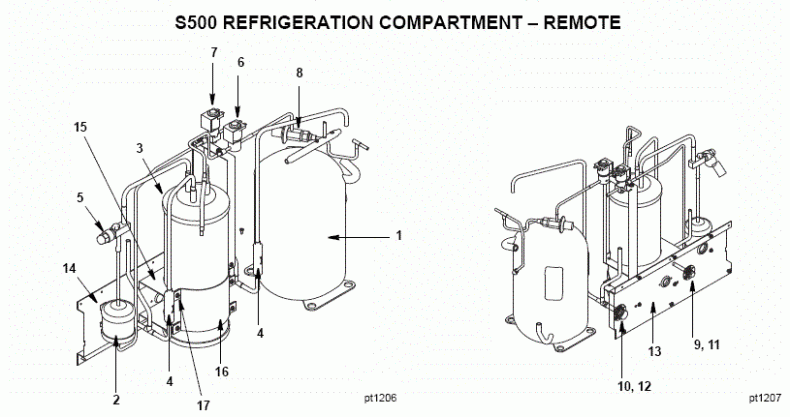

Currently Viewing: S500 Refrigeration Compartment - Remote  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1 Compressor (Refer to COMMON PARTS)
2 Drier   89-3027-9 Manitowoc Drier 89-3027-9 Ships In 1-2 Days $62.77
3 Receiver   8250583 Receiver, 4.00 Dia X 16.0 Lg Ships In 7-10 Days $216.00
4 Magni-Check Valve   83-7314-9 Magni-Check Valve Assy Ships In 7-10 Days $60.92
5 Refrigeration Service Valve   83-7316-9 Valve, Manual Shut Off, 3/8" - 83-7316-9 Ships In 7-10 Days $65.54
5a Cap for Refrigeration Service Valve   5650753 Cap for Receiver Service Valve
6 Harvest Pressure Regulating Solenoid (HPR) Valve
6a HPR Valve Including 115V 60 Hz Electrical Coil (Danfoss)   76-3000-1 Hpr Solenoid Valve - 76-3000-1 Ships In 1-2 Days $114.95
6b HPR Valve 115V 60 Hz Coil Only Danfoss   000005156 Coil Only 115V Danfoss In Stock $32.95
6c HPR Valve Including 208/230V 50/60 Hz Electrical Coil (Danfoss)   76-3006-1 Hpr Solenoid Valve - 76-3006-1 Ships In 7-10 Days $118.15
6d HPR Valve 208/230V 50/60 Hz Coil Only Danfoss   000005157 Coil Only 230V Danfoss - 000005157 Ships In 7-10 Days $35.31
7 Liquid Line Solenoid (LLS) Valve
7a LLS Valve Including 115V 60 Hz Electrical Coil (Danfoss)   76-3006-1 Hpr Solenoid Valve - 76-3006-1 Ships In 7-10 Days $118.15
7b LLS Valve 115V 60 Hz Coil Only Danfoss   000005156 Coil Only 115V Danfoss In Stock $32.95
7c LLS Valve Including 208/230V 50/60 Hz Electrical Coil (Danfoss)   76-3008-1 Solenoid Valve - 76-3008-1 Ships In 1-2 Days $143.08
7d LLS Valve 208/230V 50/60 Hz Coil Only Danfoss   000005157 Coil Only 230V Danfoss - 000005157 Ships In 7-10 Days $35.31
8 Harvest Pressure Regulating Valve (HPR)   83-6779-3 Harvest Pressure Regulator Valve - 83-6779-3 Ships In 7-10 Days $104.31
9 Coupling – Male, 5/8-18   8360343 Coupl Male 5/8-18 THD Ships In 7-10 Days $19.39
10 Coupling – Male, 1-1/6-12   8360353 Coupling Male 1-1/16-12 THD Ships In 7-10 Days $30.46
11 Coupling Mounting Flange for 5/8-18   8360053 Mtg Flg 1/4-3/8 #5706-22-6s Ships In 7-10 Days $6.46
12 Coupling Mounting Flange for 1-1/16-12   8360063 Mtg Flg 1/2-7/8 FD67-1008-12 Ships In 7-10 Days $6.47
13 Back Panel   6061739 Back Panel Ships In 7-10 Days $48.92
14 Drier Support Bracket   5650619 Drier Support Ships In 7-10 Days $5.54
15 Receiver Mounting Bracket   6063039 Receiver Mounting Bracket Ships In 7-10 Days $20.50
16 Receiver Mounting Strap   6063149 Support - Receiver Ships In 7-10 Days $19.50
17 Screw, #10-24 x .50 52-0206-9 Sl Hex Hd Screw (Pkg of 12) Ships In 7-10 Days $10.15
18 Base (Receiver Mounting)   6063049 Base Bracket Ships In 7-10 Days $19.50
