Manitowoc S600 Series Ice Machine Parts Diagram - Models in series: SD0602A, SD0603W, SD0692N, SY0604A, SY0605W, SY0694N
Currently Viewing: S600 Control Box  > Go Back To Other Parts Lists

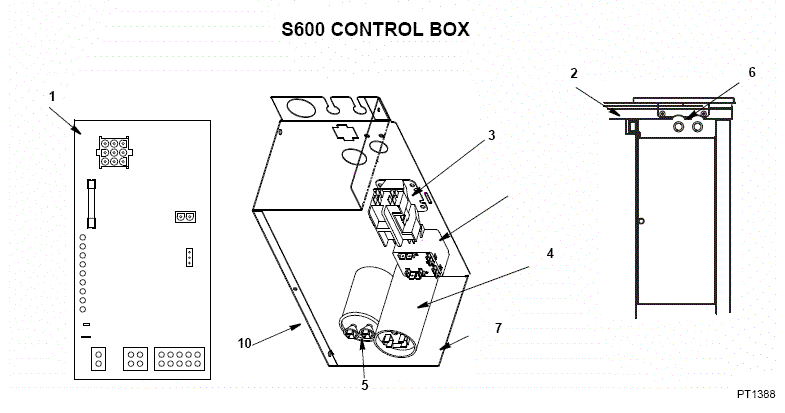

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1)......Control Board (for use with all voltages) 20-0619-9 Manitowoc Control Board - 20-0619-9 In Stock $375.00
1a).....7 Amp Fuse – Mounted on Control Board   25-1100-3 Fuse 7 Amp 5 Pack Ships In 1-2 Days $31.95
2)...... Switch Only   20-0793-9 Toggle Switch Ships In 1-2 Days $10.95
2a).....Toggle Switch Wiring Harness   20-0807-9 Wiring Harness - Toggle Switch Ships In 7-10 Days $26.77
2b).....Toggle Switch Box   40-1163-9 Toggle Switch Box Ships In 7-10 Days $9.23
3)......Contactor
3a).....208-230V/50-60Hz/1 Ph   20-0659-9 Contactor, 208-230, 1ph W/Shunt - 20-0659-9 Ships in 1-2 Days $25.85
4)......PTCR Compressor Starter For Tecumseh Only   85-0499-3 Ptcr, Motor Start, 18 Amp Ships in 1-2 Days $39.95
5)......Compressor Run Capacitor
5a).....208-230V/50-60Hz/1 Ph   85-0393-3 Run Cap 30 MFD 440V 2 Dia Ships In 7-10 Days $43.38
6)......Refrigeration Service Valve Assembly   83-7326-3 Valve, Access Ships In 7-10 Days $10.15
7)......Control Box   76-0214-3 Control Box Ships In 7-10 Days $63.69
7a)..... Control Box Cover (Not shown)   7602153 Manitowoc Control Box Cover Ships In 5-7 Days $24.95
8)...... P.T.C.R. Compressor Starter Mounting Bracket.   85-0501-3 Bracket, Ptcr Mounting Ships In 7-10 Days $8.31
9)...... Control Board Mounting Supports (Not shown)   43-0225-3 Support Ships In 7-10 Days $7.38
10)..... Capacitor Mounting Strap   60-2495-1 Capacitor Bracket Only Ships In 7-10 Days $7.38
11).....Screw, #10-24 x .50 Ground 52-0216-9 Ph Hx Wash Head (Pkg of 6) - 52-0216-9 In Stock $7.95
11a)....Star Washer   55-7320-9 Lockwasher (Pkg of 10) Ships In 7-10 Days $7.00
12).....Screw, #10-24 x .50 52-0206-9 Sl Hex Hd Screw (Pkg of 12) Ships In 7-10 Days $10.15
13)..... Control Box Wiring Harness (Not shown)
13a).... Air   2007319 Wiring Harness - Air Ships In 7-10 Days $34.15
13b).... Water   2007329 Wiring Harness - Water Ships In 7-10 Days $33.23
13c)....Remote   2007339 Wiring Harness - Remote Ships In 7-10 Days $34.15
13d)....Ground Wire   2008699 Ground Wire Ships In 7-10 Days $4.75
