Manitowoc SD0603W Ice Machine Parts Diagram

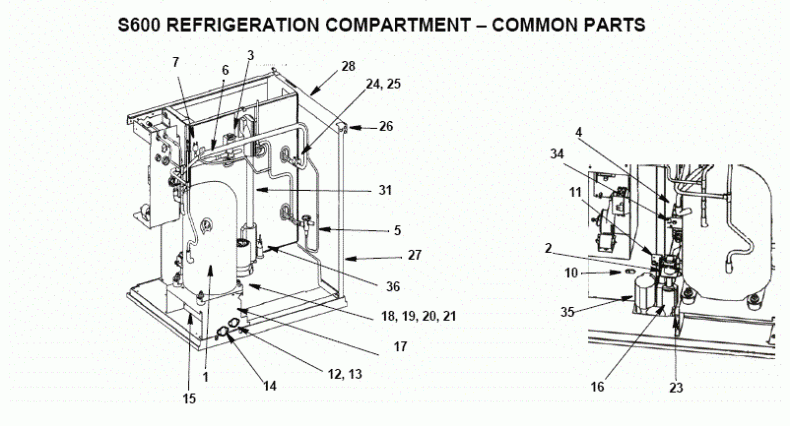

Currently Viewing: S600 Refrigeration Compartment- Common Parts  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1)...... Compressor
1a)..... 230V/60Hz/1   76-0291-3 Compressor Assembly S0600 208-230V/60Hz/1 Ph
1b)..... 230V/50Hz/1   7602923 Compressor Assembly S0600 230V/50Hz/1 Ph
2)...... Water Dump Valve
2a)..... 208-230V/50-60 Hz 000001768 Manitowoc Dump Valve W/230V Coil 1 Week To Ship $78.20
3)...... Harvest Valve Including Electrical Coil
3a)..... 230V/50-60Hz/1   76-3009-1 Solenoid Vlv Evu4 .50x.38 230V
Harvest Valve Coil Only
a)...... 230V/50-60Hz/1   000005157 Coil Only 230V Danfoss - 000005157
4)...... Water Inlet Valve with Coil
4a)..... 230V/50-60Hz/1 000009121 Water Inlet Valve For S Series NO LONGER AVAILABLE $57.00
5)...... Expansion Valve   76-0158-3 Expansion Valve - 76-0158-3
5a)..... Expansion Valve Body Insulation Boot   40-0036-3 Insul, TXV Boot, Danfoss
5b)..... Expansion Valve Bulb Insulation Boot   40-0720-3 Insulation, TXV Bulb - 40-0720-3
6)...... Manifold Strainer (in front of hot gas valve)   82-5104-9 Manifold Strainer
7)...... High Pressure Cut-out (Auto Reset) 20-0124-3 High Pressure Cut out AR Control 1 Week To Ship $69.95
8)...... Electrical Box on Rear of Ice Machine
8a)..... Box (included in Back Panel Assembly)
8b)..... Terminal Block 3 Pole   20-0614-3 Terminal Block - 20-0614-3
8c)..... Groundscrew 52-0216-9 Ph Hx Wash Head (Pkg of 6) - 52-0216-9
9)...... Compressor Compartment Wiring Harness
9a)..... Water   2007329 Wiring Harness - Water
9b)..... Air   2007319 Wiring Harness - Air
9c ).....Remote   2007339 Wiring Harness - Remote
10)..... Bin Switch 000007888 Magnetic Bin Switch 1 Week To Ship $35.15
11).....Dump Valve Mounting Bracket   6058459 Mounting Bracket
12).....Water Inlet Valve Wing Adapter   87-0609-3 Female Wing Adaptor - 87-0609-3 1 Week To Ship $22.00
13).....Water Inlet Valve Wing Adapter Plastic Fitting   13-6096-1 Connector, Male, 1/4od X 1/8nptf
14).....Water Drain Female Wing Adapter   87-0608-3 Adapter, .50ID X .63OD 1/2NPTF
15).....Water Drain Clear Tubing, .625 ID x 12 inches 44-2038-3 Vinyl Tube 5/8" ID- 44-2038-3
16).....Dump Valve Tubing (3.25 inches) 44-2038-3 Vinyl Tube 5/8" ID- 44-2038-3
17).....Compressor Mounting Base   6061709 Compressor Mounting Base
18).....Compressor Mounting Rubber Grommet   8503069 Rubber Grommet (Pkg of 4)
19).....Compressor Mounting Sleeve   85-0394-9 Sleeve (Pkg of 4)
20).....Compressor Mounting Bolt   5004819 Bolt, Pkg of 4
21).....Compressor Mounting Nut   5004829 Nut, Pkg of 4
22).....Compressor Wiring Harness (Not Shown)   2008529 Wiring Harness - Compressor
23).....Clamp, Water Drain 56-5070-9 Manitowoc Clamp .799/.899 ID
24).....Clamp, Expansion Valve Bulb   56-5052-9 Ss Wormdrive Clamp (Pkg of 2)
25).....Copper Bulb Strap   3000503 Strap, Copper - TXV Bulb 1/2OD
26).....Screw, #10-24 x .50 52-0206-9 Sl Hex Hd Screw (Pkg of 12)
27).....Left Corner Post   606293-9 Left Hand Cornerpost
28).....Left Top Channel   60-6864-9 Left Hand Top Channel
29).....Right Corner Post (Not Shown)   606292-9 Right Hand Cornerpost
30).....Right Top Channel (Not Shown)   606257-9 RH Top Channel
31).....Overmolded Tube Assembly (vinyl tubing from distribution tube to water pump & dump valve) 000000869 Overmolded Tube Assembly 000000869 - Replaced by 000003405
31a)....Clamp .859/.989 ID   5650609 Hose Clamp Pkg of 2
31b).....Clamp .799/.899 ID 56-5070-9 Manitowoc Clamp .799/.899 ID
32).....Water Inlet Valve Tubing (Not Shown)   40-1043-9 Water Inlet Tube
33).....Connector (Water inlet valve)   13-6098-9 Connector
34).....Water Inlet Valve Bracket   6058459 Mounting Bracket
35).....Check Valve Replacement (includes water diverter, vinyl tubing & insulation)   000002473 Manitowoc Check Valve Replacement Kit 1 Week To Ship $23.55
36).....Holder, Water Level Probe 20-0655-9 Holder, Water Level Probe
36a)....Screw (mounts Water Level Probe Holder) 52-0206-9 Sl Hex Hd Screw (Pkg of 12)
