| Item |
|
Part# |
Description |
Stock |
Price |
Qty |

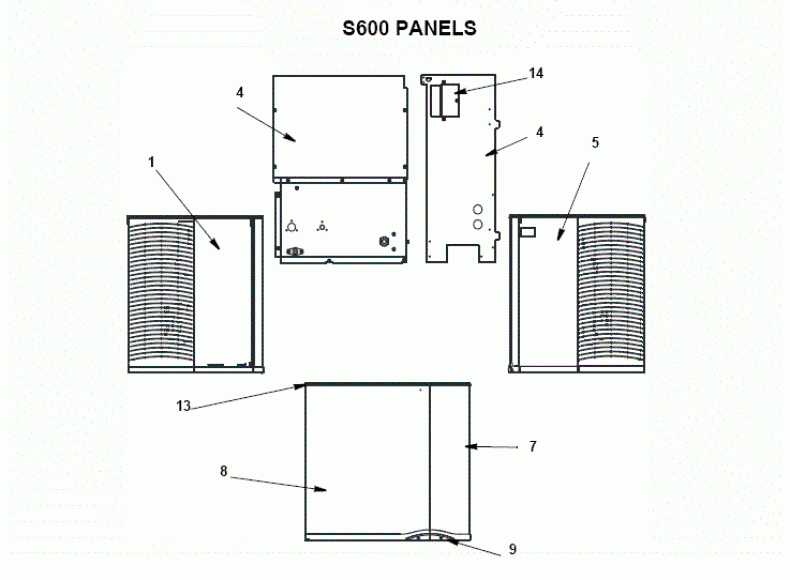

| 1)...... Left Side Panel |
|
606053-9 |
Left Hand Side Panel |
Ships In 7-10 Days |
$106.15
|
|
| 2)...... Air Baffle (Not Shown) |
|
6060779 |
Air Baffle |
Ships In 7-10 Days |
$25.85
|
|
| 3)...... Air Filter(Not Shown) |
|
30-0568-9 |
Air Filter |
Ships In 1-2 Days |
$16.95
|
|
| 4)...... Back Panel, Water or Remote |
|
6066059 |
Back Panel Water/Remote |
Ships In 7-10 Days |
$82.15
|
|
| 4a)..... Back Panel, Air |
|
60-6595-9 |
Back Panel - Air |
Ships In 7-10 Days |
$143.08
|
|
| 5)...... Right Side Panel |
|
606052-9 |
Right Side Panel |
Ships In 7-10 Days |
$106.15
|
|
| 6a).....Top Cover Up To Serial# 110095752 |
|
00006699 |
Top Cover - 00006699 |
Ships In 7-10 Days |
$108.92
|
|
| 6b).....Top Cover After Serial# 110095752 |
|
40-1548-3 |
Top Cover - 30" - Replaced by 000006699 |
|
|
|
| 7)...... Right Door |
|
|
|
|
|
|
| 7a)..... Up To Serial# 110095752 |
|
60-6119-9 |
Right Door |
Ships In 7-10 Days |
$209.54
|
|
| 7b)..... After Serial# 110095752 |
|
6071661 |
Assembly, 30" Right Hand Door |
In Stock |
$223.38
|
|
| 8)...... Left Door |
|
|
|
|
|
|
| 8a)..... Up To Serial# 110095752 |
|
6061189 |
Left Door |
Ships In 7-10 Days |
$335.08
|
|
| 8b)..... After Serial# 110095752 |
|
6071651 |
Left Hand Door Panel-30" |
Ships In 7-10 Days |
$356.31
|
|
| 9)...... Right/Left Door Screw |
|
50-0489-9 |
Screw, Pkg of 4 |
|
|
|
| 10a).... Front Top Support (Not shown) |
|
000000295 |
Manitowoc Top Frame 000000295 |
Ships In 7-10 Days |
$49.95
|
|
| 10b).... Mounting Screw Left Side 8-32 x 1 |
|
5005379 |
Screw, Pkg of 10 - 5005379 |
Ships In 7-10 Days |
$4.62
|
|
| 10c).... Mounting Screw Right Side 8-32 x.50 |
|
5005099 |
Screw, Pkg of 6 |
Ships In 7-10 Days |
$7.00
|
|
| 10d).... Front Cover Strike |
|
30-0602-9 |
Front Panel Striker |
Ships In 7-10 Days |
$25.85
|
|
| 11)..... Bottom Door Frame (Not Shown) |
|
76-0226-3 |
Bottom Frame |
Ships In 7-10 Days |
$24.95
|
|
| 11a).... Mounting Screw Left Side 8-32 x 1 |
|
5005379 |
Screw, Pkg of 10 - 5005379 |
Ships In 7-10 Days |
$4.62
|
|
| 11b).... Mounting Screw Right Side 10 x 24 x .50 PHIL |
|
52-0206-9 |
Sl Hex Hd Screw (Pkg of 12) |
Ships In 7-10 Days |
$10.15
|
|
| 12)..... Door Catch Bracket (RHD) |
|
60-6236-9 |
Manitowoc Door Catch Bracket |
Ships In 7-10 Days |
$6.95
|
|
| 12a).... Mounting Screw 8-32 x .50 Phil |
|
50-2624-9 |
Ctl Panel Screw (Pkg of 10) |
Ships In 7-10 Days |
$7.38
|
|
| 13)..... Left Door Pivot Leaf Hinge (Top or Bottom) |
|
30-0557-9 |
LH Door Pivot Leaf Hinge |
Ships In 7-10 Days |
$9.95
|
|
| 13a).... Mounting Screw 10-24 x .5 TCS-23 PHIL/FL |
|
5005379 |
Screw, Pkg of 10 - 5005379 |
Ships In 7-10 Days |
$4.62
|
|
| 14)..... Electrical Connection Box Cover (Included in Back Panel Assembly) |
|
|
|
|
|
|
| 15)..... Sachet Holder (Not Shown - Inside Left Door) |
|
40-0459-3 |
Holder, Sachet Bags |
Ships In 7-10 Days |
$19.38
|
|
| 15a).... Mounting Screws 8-32 x 3/8 |
|
5004799 |
Screw (Each) |
|
|
|
| 16)..... Top Air Discharge Kit Option (replaces standard top and side panels to discharge air out of top of machine) |
|
K-00379 |
K-00379 Top Air Discharge Kit |
Ships In 7-10 Days |
$214.00
|
|
| 16a).... Top Cover Only |
|
000000480 |
Manitowoc Top Cover |
Ships In 7-10 Days |
$264.00
|
|
| 16b).... Left Side Panel Only |
|
6066751 |
Panel, Side - Left Hand - Water |
Ships In 7-10 Days |
$294.46
|
|
| 16c).... Right Side Panel Only |
|
6066761 |
Panel, Side - Right Hand - Water |
Ships In 7-10 Days |
$294.46
|
|
| 16d).... Screws 10-24 x 1/2 |
|
52-0209-9 |
Phil Flat Hd Screw Pkg of 12 - Obsolete |
|
|
|
