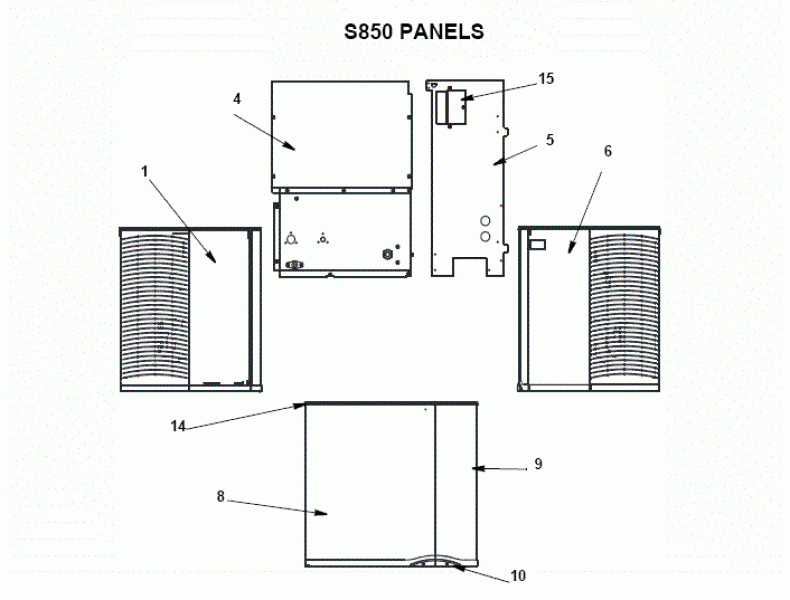

Manitowoc SD0892N Ice Machine Parts Diagram
Currently Viewing: S850 Panels  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1)...... Left Side Panel   6060559 LH Side Panel Ships In 7-10 Days $110.77
2)...... Air Baffle (Not Shown)   6059719 Air Baffle Ships In 7-10 Days $37.85
3)...... Air Filter(Not Shown)   30-0555-9 Air Filter Ships In 7-10 Days $25.95
4)...... Back Panel, Water or Remote   6058649 Back Panel - Water or Remote Ships In 7-10 Days $135.69
5)...... Back Panel, Air   6061699 Back Panel - Air Ships In 7-10 Days $88.62
6)...... Right Side Panel   60-6054-9 RH Side Panel Ships In 7-10 Days $132.92
7a).....Top Cover Up To Serial# 110095752   00006699 Top Cover - 00006699 Ships In 7-10 Days $108.92
7b).....Top Cover After Serial# 110095752   40-1548-3 Top Cover - 30" - Replaced by 000006699
8)...... Right Door
8a)..... Up To Serial# 110095752 6061179 Manitowoc Right Hand Door Ships In 7-10 Days $210.46
8b)..... After Serial# 110095752   60-7122-1 Right Hand Door Panel - 30" Ships In 7-10 Days $178.15
9)...... Left Door
9a)..... Up To Serial# 110095752 606116-9 Left Hand Door Ships In 7-10 Days $369.23
9b)..... After Serial# 110095752   60-7121-1 Left Hand Door Panel - 30" Ships In 7-10 Days $330.46
10)..... Right/Left Door Screw   50-0489-9 Screw, Pkg of 4
11)..... Front Top Support (Not shown)   000000295 Manitowoc Top Frame 000000295 Ships In 7-10 Days $49.95
11a).... Mounting Screw Left Side 8-32 x 1   5005379 Screw, Pkg of 10 - 5005379 Ships In 7-10 Days $4.62
11b).... Mounting Screw Right Side 8-32 x.50   5005099 Screw, Pkg of 6 Ships In 7-10 Days $7.00
11c).... Front Cover Strike   30-0602-9 Front Panel Striker Ships In 7-10 Days $25.85
12)..... Bottom Door Frame (Not Shown)   76-0226-3 Bottom Frame Ships In 7-10 Days $24.95
12a).... Mounting Screw Left Side 8-32 x 1   5005379 Screw, Pkg of 10 - 5005379 Ships In 7-10 Days $4.62
12b).... Mounting Screw Right Side 10 x 24 x .50 PHIL 52-0209-9 Phil Flat Hd Screw Pkg of 12 - Obsolete
13)..... Door Catch Bracket (RHD) 60-6236-9 Manitowoc Door Catch Bracket Ships In 7-10 Days $6.95
13a).... Mounting Screw 8-32 x .50 Phil   50-2624-9 Ctl Panel Screw (Pkg of 10) Ships In 7-10 Days $7.38
14)..... Left Door Pivot Leaf Hinge (Top or Bottom)   30-0557-9 LH Door Pivot Leaf Hinge Ships In 7-10 Days $9.95
14a).... Mounting Screw 10-24 x .5 TCS-23 PHIL/FL   5005379 Screw, Pkg of 10 - 5005379 Ships In 7-10 Days $4.62
15)..... Electrical Connection Box Cover (Included in Back Panel Assembly)
16)..... Sachet Holder (Not Shown - Inside Left Door)   40-0459-3 Holder, Sachet Bags Ships In 7-10 Days $19.38
16a).... Mounting Screws 8-32 x 3/8   5004799 Screw (Each)
