Manitowoc SD0892N Ice Machine Parts Diagram

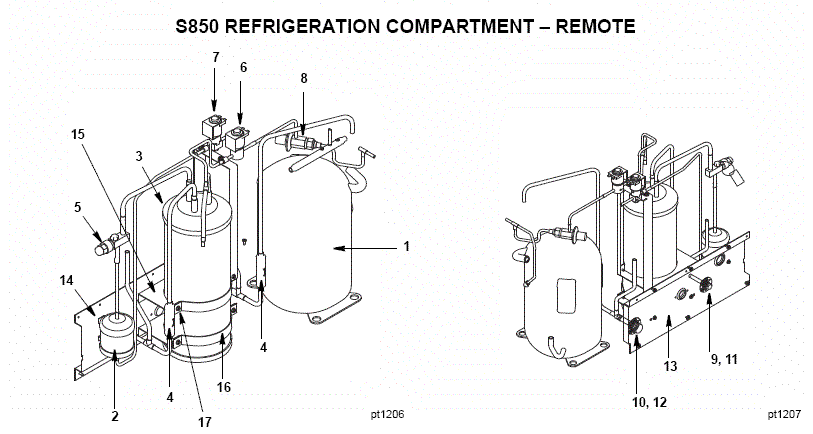

Currently Viewing: S850 Refrigeration Compartment - Remote  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1)...... Compressor (After Serial Number 110682385)
1a)..... 208-230V/60 Hz/1 Ph 000001736 Compressor Assembly 208-230V/60Hz/1 Ph
1b)..... 208-230V/60 Hz/3 Ph 000001737 Compressor Assembly 208-230V/60Hz/3 Ph
1c)..... 230V/50 Hz/1 Ph 000001738 Compressor Assembly 208-230V/50Hz/1 Ph
1)...... Compressor (Before Serial Number 110682385)
1a)......208-230V/60 Hz/1 Ph 76-0222-3 Compressor Assembly 208-230V/60Hz/1 Ph
1b)..... 208-230V/60 Hz/3 Ph 7602233 Compressor Assembly 208-230V/60Hz/3 Ph
1c)..... 230V/50 Hz/1 Ph 7602243 Compressor Assembly 208-230V/50Hz/1 Ph
2)...... Drier   89-3027-9 Manitowoc Drier 89-3027-9 Ships In 1-2 Days $62.77
3)...... Receiver 8900009 Receiver Ships In 7-10 Days $224.50
4)......Magni-Check Valve   83-7314-9 Magni-Check Valve Assy Ships In 7-10 Days $60.92
5)...... Refrigeration Service Valve   83-7316-9 Valve, Manual Shut Off, 3/8" - 83-7316-9 Ships In 7-10 Days $65.54
5a).....Cap for Refrigeration Service Valve   5650753 Manitowoc Cap for Receiver Service Valve - 56-5075-3 Ships In 7-10 Days $7.50
6)...... Harvest Pressure Regulating Solenoid (HPR) Valve
6a)..... HPR Valve Including 208/230V 50/60 Hz Electrical Coil (Danfoss)   76-3006-1 Hpr Solenoid Valve - 76-3006-1 Ships In 7-10 Days $118.15
6b)..... HPR Valve 208/230V 50/60 Hz Coil Only Danfoss   000005157 Coil Only 230V Danfoss - 000005157 Ships In 7-10 Days $35.31
7)...... Liquid Line Solenoid (LLS) Valve
7a).....LLS Valve Including 208/230V 50/60 Hz Electrical Coil (Danfoss)   76-3008-1 Solenoid Valve - 76-3008-1 Ships In 1-2 Days $143.08
7b)..... LLS Valve 208/230V 50/60 Hz Coil Only Danfoss   000005157 Coil Only 230V Danfoss - 000005157 Ships In 7-10 Days $35.31
8)......Harvest Pressure Regulating Valve (HPR)   83-6779-3 Harvest Pressure Regulator Valve - 83-6779-3 Ships In 7-10 Days $104.31
9)...... Coupling – Male, 5/8-18   8360343 Coupl Male 5/8-18 THD Ships In 7-10 Days $19.39
10)..... Coupling – Male, 1-1/6-12   8360353 Coupling Male 1-1/16-12 THD Ships In 7-10 Days $30.46
11)..... Coupling Mounting Flange for 5/8-18   8360053 Mtg Flg 1/4-3/8 #5706-22-6s Ships In 7-10 Days $6.46
12).....Coupling Mounting Flange for 1-1/16-12   8360063 Mtg Flg 1/2-7/8 FD67-1008-12 Ships In 7-10 Days $6.47
13).....Back Panel   6061739 Back Panel Ships In 7-10 Days $48.92
14).....Drier Support Bracket   5650619 Drier Support Ships In 7-10 Days $5.54
15).....Receiver Mounting Bracket   6000561 Receiver Mtg. Bracket Ships In 7-10 Days $12.92
16).....Receiver Mounting Strap   6307214 Receiver MTG Strap Ships In 7-10 Days $13.85
17).....Screw, #10-24 x .50 52-0206-9 Sl Hex Hd Screw (Pkg of 12) Ships In 7-10 Days $10.15
18).....Base (Receiver Mounting)   6058653 Base, Water Condenser/Receiver Stainless Steel Ships In 7-10 Days $139.38
