Manitowoc SD1002A Ice Machine Parts Diagram
Currently Viewing: S1000 Refrigeration Compartment- Air Cooled  > Go Back To Other Parts Lists

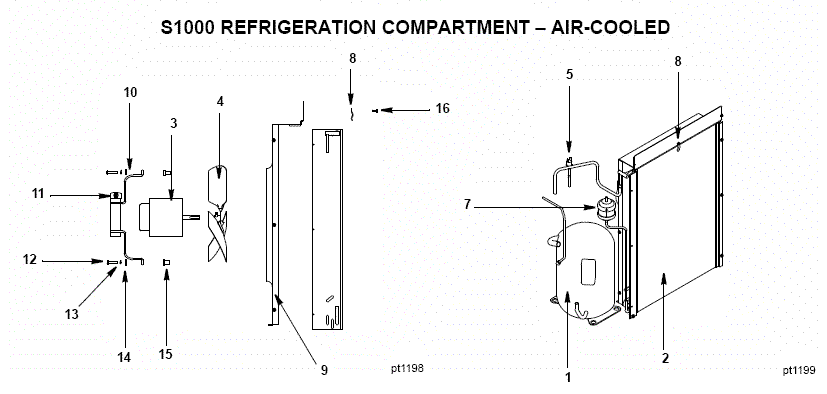

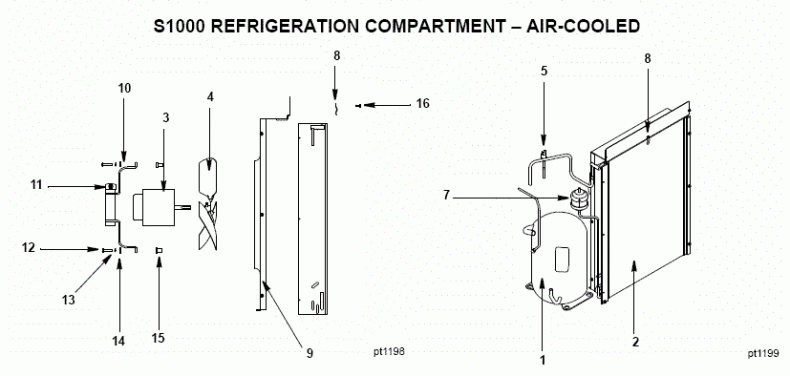

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1)...... Compressor (Before Serial Number 110697023)
1a)..... 208-230V/60 Hz/1 Ph 76-0229-3 Compressor Assembly 208-230V/60Hz/1 Ph
1b)...... 208-230V/60 Hz/3 Ph   76-0230-3 Compressor Assembly 208-230V/60Hz/3 Ph
1c)..... 230V/50 Hz/1 Ph 7602313 Compressor Assembly 230V/50Hz/1 Ph
1)....... Compressor (After Serial Number 110697023)
1a)..... 208-230V/60 Hz/1 Ph 000002486 Compressor Assembly 208-230V/60Hz/1 Ph
1b)..... 208-230V/60 Hz/3 Ph 000002487 Compressor Assembly 208-230V/60Hz/3 Ph
1c)..... 230V/50 Hz/1 Ph 000002488 Compressor Assembly 208-230V/50Hz/1 Ph
2)...... Air Condenser 8252399 Manitowoc Air Condenser Ships In 7-10 Days $385.85
3)...... Fan Motor (208-230V/60 Hz or 230V/50 Hz)   76-2672-3 Fan Motor - 76-2672-3 2-3 Days to Ship $323.00
4)......Fan Blade 24-1612-3 Fan Blade Ships In 7-10 Days $41.54
5)...... Fan Cycling Control   20-0127-3 Fan Cycling Control In Stock $79.38
6)...... Air Filter (Not shown)   30-0555-9 Air Filter Ships In 7-10 Days $25.95
7)...... Drier 89-3025-9 Manitowoc Drier - 89-3025-9 Ships In 1-2 Days $47.08
8)...... Air Filter Clip   56-5069-9 Nylon Spring Clip-Pkg of 4 Ships In 7-10 Days $8.00
9)...... Fan Shroud 6058119 Fan Shroud Ships In 7-10 Days $81.23
10).....Fan Motor Mounting Bracket 34-0616-3 / 30-0684-3 Wire Motor Mount - Replaced by 30-0684-3 Ships In 7-10 Days $38.77
11).....Fan Motor Mounting Screw   5033589 Screw 1/4x1.75 (Pkg of 6) Ships In 7-10 Days $8.31
11a)....Fan Motor Mounting Lockwasher   5545109 Lockwasher (Pkg of 12) Ships In 7-10 Days $8.31
11b)....Fan Motor Mounting Hexnut   5429529 Hexnut 1/4-20 (Pkg of 12) - Obsolete
12).....Fan Bracket Mounting Screw   5033589 Screw 1/4x1.75 (Pkg of 6) Ships In 7-10 Days $8.31
13).....Fan Bracket Mounting Lockwasher   5545109 Lockwasher (Pkg of 12) Ships In 7-10 Days $8.31
14).....Fan Bracket Mounting Flatwasher   5573059 Washer (Pkg of 10) Ships In 7-10 Days $6.46
15).....Fan Bracket Mounting Rubber Wellnut   54-2955-9 Rubber Well-Nut (Pkg of 10) Ships In 7-10 Days $27.95
16).....Screw, #10-24 x .50 52-0206-9 Sl Hex Hd Screw (Pkg of 12) Ships In 7-10 Days $10.15
