Manitowoc SD1092N Ice Machine Parts Diagram
Currently Viewing: JC0895 Remote Condenser  > Go Back To Other Parts Lists

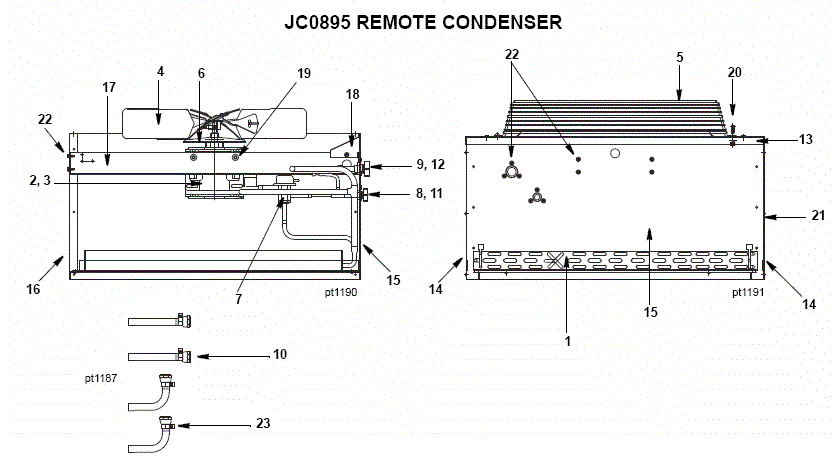

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1)...... Air Condenser   88-5062-9 Air Condenser AC1195 - 88-5062-9 Ships In 7-10 Days $451.38
2)...... Fan Motor (208-230V 50/60 Hz/1 Ph)   76-2941-3 Manitowoc Fan Motor, Magnetek 208-230V - 76-2941-3 Ships In 2-3 Days $494.00
3)...... Fan Motor Run Capacitor - Emerson (Magnatec No Longer Available)   85-0458-3 Run Capacitor 3 MFD 370V 60Hz Ships In 7-10 Days $81.23
4)...... Fan Blade   24-1611-3 Fan Blade - 24-1611-3 Ships In 7-10 Days $80.31
5)...... Fan Guard   34-0064-3 Fan Guard Remote Condensor Ships In 7-10 Days $87.69
6)...... Rain Slinger   24-1505-3 Rain Slinger 6 Dia. Ships In 7-10 Days $10.95
7)...... Head Pressure Control
7a).....Before Serial Number 110697288   83-6809-3 Head Pressure Control Valve Ships In 7-10 Days $171.69
7b)..... After Serial Number 110697288 000002369 Head Pressure Control Ships In 7-10 Days $172.62
8)......Coupling – Male, 5/8-18   8360343 Coupl Male 5/8-18 THD Ships In 7-10 Days $19.39
9)......Coupling – Male, 1-1/6-12   8360353 Coupling Male 1-1/16-12 THD Ships In 7-10 Days $30.46
10).....Female Line Set Coupling Kit (Sold as Finished Goods Sales Kit) K-00129 Manitowoc Remote Coupling Kit K-00129 Ships In 7-10 Days $74.99
11).....Coupling Mounting Flange (for 5/8-18)   8360053 Mtg Flg 1/4-3/8 #5706-22-6s Ships In 7-10 Days $6.46
12).....Coupling Mounting Flange (for 1-1/16-12)   8360063 Mtg Flg 1/2-7/8 FD67-1008-12 Ships In 7-10 Days $6.47
13).....Top Cover   6017751 Cover, Top
14)..... Panel – Side   6017741 Panel, Side Ships In 7-10 Days $48.00
15).....Panel – Rear   6017731 Panel, Rear Ships In 7-10 Days $98.77
16).....Panel – Front   6017721 Panel, Front Ships In 7-10 Days $92.31
17).....Fan Motor Mounting Bracket   6017681 Fan Motor Mounting Bracket Ships In 7-10 Days $19.38
18).....Electrical Box Cover   6017761 Cover, Electrical Ships In 7-10 Days $24.00
19).....Fan Motor Mounting Screw (5/16-18 x 5/8)   50-3565-9 Screw (Pkg of 10) Ships In 7-10 Days $8.00
19a)....Fan Motor Mounting Flatwasher   5573099 Flatwasher (Pkg of 10) Ships In 7-10 Days $6.46
19b)....Fan Motor Mounting Lockwasher   55-7313-9 Lockwasher (Pkg of 10) Ships In 7-10 Days $7.00
19c)....Fan Motor Mounting Hexnut   54-2975-9 Hex Nut Pkg of 12 Ships In 7-10 Days $9.00
20).....Fan Guard Mounting Screw (1/4-20 x 5/8)   5033459 Machine Screw (Pkg of 10) Ships In 7-10 Days $9.23
20a)....Fan Guard Mounting Flatwasher   55-7304-9 Flatwasher 1/4 (Pkg of 12) - Obsolete
20b)....Fan Guard Mounting Lockwasher   55-4511-9 Lockwasher (Pkg of 10) - 55-4511-9 In Stock $6.95
20c)....Fan Guard Mounting Hexnut   5429529 Hexnut 1/4-20 (Pkg of 12) - Obsolete
21).....Panel/Condenser Mounting Screw (#8 x 1/2)   5121539 Screw (Pkg of 10) - Obsolete
21a)....Panel/Condenser Mounting Lockwasher   5544599 Washer (Pkg of 10) Ships In 7-10 Days $6.46
22).....Screw (#10-24 x 1/2) 52-0206-9 Sl Hex Hd Screw (Pkg of 12) Ships In 7-10 Days $10.15
23).....Valve Cores (used in linesets)   7626843 Access Fitting Core (Pkg of 4) Ships In 7-10 Days $12.00
24).....Legs (Not shown)   601769-1 Remote Mounting Leg - 601769-1 Ships In 7-10 Days $30.46
