Manitowoc QD0202A Ice Machine Parts Diagram
Currently Viewing: Q200 Evaporator  > Go Back To Other Parts Lists

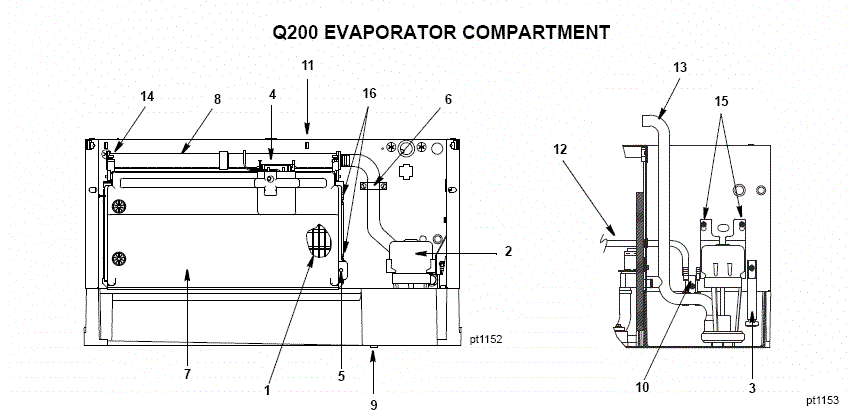

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1a)...Evaporator Assembly Regular Cube   76-2585-9 Ep Asy QR/Jr/Br200/250/270/280
1b)...Evaporator Assembly Dice Cube   76-2584-9 Evp Asy QD/Jd/Bd200/250/270
1c)...Evaporator Assembly Half Dice Cube   76-2658-9 Evp Asy QY/BY/JY200/250/270
2a)...Water Pump 115V/60 Hz 76-2306-3 Manitowoc Water Pump, 115V 60Hz 96d 6w - 76-2306-3 1 Week To Ship $393.64
2b)...Water Pump 208-230V/60 Hz or 230V/50 Hz 76-2601-3 Manitowoc Water Pump, 230V, 50/60Hz, 96deg - 76-2601-3 1 Week To Ship $429.95
3)...Water Level Probe 25-1129-3 Manitowoc Probe, Sensor, Water Level 1 Week To Ship $57.15
4)...Ice Thickness Control Probe 76-2781-3 Manitowoc Ice Thickness Control - 76-2781-3 5-7 Days to Ship $100.04
5)...Magnetic Bin Switch (Mounted to Evaporator) 2301483 Manitowoc Magnetic Bin Switch Assembly 1 Week To Ship $81.30
6)...Water Flow Clamp (Use on Regular Cube Evap. Only)   76-2054-3 Water Flow Clamp Assy (Service)
7)...Water Curtain   40-0478-3 Water Curtain - 40-0478-3
7a)...Water Curtain Magnet and Clip. 76-2802-3 Water Curtain Magnet/Clip 1 Week To Ship $21.95
7b)...Water Curtain Hanger 76-2776-3 Pair of Manitowoc Water Curtain Hangers - 76-2776-3 1 Week To Ship $16.54
8)...Water Distribution Tube 040002531 Water Distribution Assembly - 76-2498-3 1 Week To Ship $87.94
9)...Water Trough Drain Plug 43-0062-9 Manitowoc Water Plug - Pkg of 2 1 Week To Ship $22.42
10)...Water Inlet Flow Tube   43-0388-3 Fitting, Water/Aucs 1 Week To Ship $14.37
11)...Nylon Spring Clip   56-5090-9 Clip, Snap-In, (Pkg of 10)
12)...Water Inlet Tubing .375 ID   44-2123-3 Tube - 44-2123-3
13)...Tubing (Water Pump Out).   44-2113-3 Tube, White Vinyl, Molded
14)...Screw, #8-32 x .63 Nylon Water Distribution Tube Mounting 50-0001-3 Thumbscrew #*-32 X 3/8 Long - 50-0001-3 In Stock $12.00
15)...Screw, #10-24 x .50 52-0206-9 Sl Hex Hd Screw (Pkg of 12)
16)...Screw, #10-24 x .750 Used to Mount Evaporator 52-0218-9 Screw W/Washer (Pkg of 6) - 52-0218-9 1 Week To Ship $13.34
17 )...Base and Water Trough Repair Kit 7628063 Base and Water Trough Repair Kit - Obsolete
18)...Evaporator Top Molding and Gasket Assembly 76-2621-3 Manitowoc Evaporator Top Molding & Gasket - 76-2621-3 1 Week To Ship $76.95
